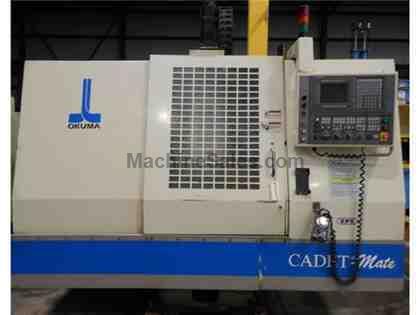

1997 Okuma Cadet Mate VMC, 40" x 20" x 20", OSP700M Control - $RFQ

Item Number: #00089068
1997 Okuma Cadet Mate VMC, 40&quot; x 20&quot; x 20&quot;, OSP700M Control

1997 Okuma Cadet Mate VMC, 40" x 20" x 20", OSP700M Control
Stock Code:  HB-20259
Price: $RFQ
Subcategory:

Vertical Machining Centers CNC

X axis40"
Y axis20"
Year of Manufacture:  1997
Manufacturer:  Okuma
Model:  Cadet Mate
Condition: Used

TRAVEL
X-AXIS (TABLE): 40”
Y-AXIS (SADDLE): 20”
Z-AXIS (SPINDLE HEAD): 20”
SPINDLE END TO TABLE SURFACE: 7.8” – 27.8”
SPINDLE CENTER TO COLUMN FRONT SURFACE: 20”

TABLE
SIZE: 47.24” X 20.08”
EFFECTIVE SIZE: 40” X 20”
LOAD CAPACITY: 1,500 LBS

SPINDLE
TAPER HOLE: NT #40
DIAMETER (FRONT BEARING): 2.76” OD
TORQUE (MAXIMUM): 51.3 LBS/FT
SPEED RANGE: 40 – 8,000 RPM

FEEDRATES
RAPID TRAVERSE X/Y & Z AXES: 787 IN/MIN
FEEDRATE X/Y/Z AXES: .01 – 314 IPM

MOTORS
MAIN MOTOR: 15/10/7.5 HP
(10 MIN/30 MIN/CONT)
X & Y AXIS BRUSHLESS DRIVE MOTOR: 2.72 HP BL (AC)
Z AXIS BRUSHLESS DRIVE MOTOR: 5.45 HP BL (AC)
THRUST X,Y: 1,360 LBS
THRUST Z: 2,700 LBS

ATC
TOOL CHANGE SPEED (TOOL TO TOOL): 6.0 SECONDS
TOOL MAGAZINE CAPACITY: 20 TOOLS
TOOL SHANK: CAT 40
PULL STUD: CAT STD
MAXIMUM TOOL DIAMETER W/ADJACENT TOOLS: 3.54”
MAXIMUM TOOL DIAMETER W/O ADJACENT TOOLS: 6.29”
MAXIMUM TOOL LENGTH: 11.8”
MAXIMUM TOOL WEIGHT: 17.6 LBS.

GENERAL
MACHINE HEIGHT: 113.6”
FLOOR SPACE REQUIRED: 162” X 135”
MACHINE WEIGHT: 9,680 LBS.
ELECTRICS: 200 V, 3 PH, 60 CYC

EQUIPPED WITH

OKUMA OSP700M CNC CONTROLS
BOX WAYS
HELICAL CUTTING
RIGID TAPPING
