Reference #32520

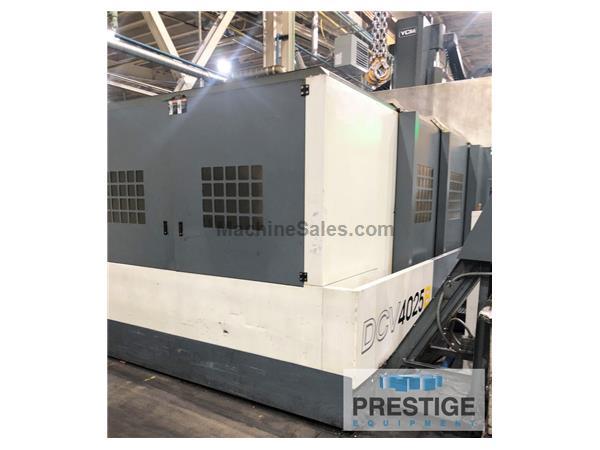

YCM DCV 4025B CNC Bridge Type Machining Center

FEATURES:
Fanuc MBX 200FB CNC Control
Coolant Through Spindle
Chip Blaster Unit
Chiller Unit
Ethernet
High Speed Machining
Data Server

CAPACITY:
Table Size ............................ 158" x 94.5"
Table Weight Capacity ................. 44,092 LBS.
Longitudinal Travel, X-Axis ........... 160"
Cross Travel, Y-Axis .................. 98"
Vertical Travel, Z-Axis .............. 40"
Feed Rate X, Y & Z .................... 472/591/591 IPM
Cutting Feed Rate ..................... 0.04~394 IPM
Spindle Speeds ........................ TO 10,000 RPM
Spindle Drive ......................... 25/30 HP (18.5/22 kw)
Spindle Taper ......................... CAT 50
Tool Changer .......................... 60 ATC
Distance Between Columns .............. 107.9"
Max. Tool Weight ...................... 44.1 Lbs.
Max. Tool Dimensions .................. 4.92" x 13.78"
Spindle Nose To Table Top ............. 7.87~47.87"
Machine Weight, Approximate ........... 101,412 Lbs.
Electrics ............................. 220/480V

EQUIPPED WITH:
Fanuc MBX 200FB CNC Control
Chip Blaster Unit
Chiller Unit
Ethernet
High Speed Machining
Data Server
Spindle Thermal Compensation
3 Roller Type Guide Way For Y Axis
Hardened And Ground Box Way Z Axis
Tool Selection Random Method
Cat 50 Tooling Package
Chip Conveyor

This machine is listed for sale by Prestige Equipment located in Melville, New York
