Reference #32572

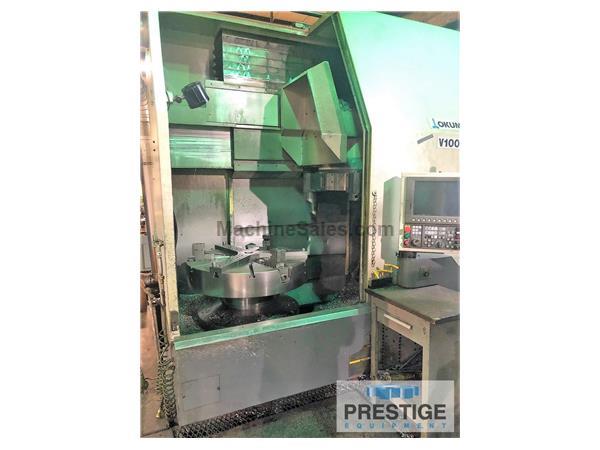

Okuma V100R 39" CNC Vertical Lathe

FEATURES:
OSP-P200L CNC Control
40" 3-Jaw Chuck
12-Position Turret
Chip Conveyor

CAPACITIES:
Maximum Cutting Diameter .............. 39.4"
Maximum Cutting Length ................ 35"
Maximum Swing ......................... 49.2"
Max. Workpiece Weight ................. 2640 Lbs.
Spindle Speeds (Stepless) ............. 8-750 RPM
Turret Positions ...................... 12
X-Axis Travel ......................... 22.2"
Z-Axis Travel ......................... 35"
Rapid Traverse, X & Y Axes ............ 945 IPM
Cutting Feedrate ...................... 236.22 IPM
Approx. Floor Space Required .......... 108" x 139"
Machine Height ........................ 135.4"
Approx. Weight ........................ 28,660 Lbs.

EQUIPPED WITH:
OSP-P200L CNC Control
40" 3-Jaw Chuck
12-Position Turret
Hardened & Ground Box Ways
Coolant System
60 HP/ 50 HP Spindle Drive Motor
Chip Conveyor

NOTE:
Inspect In Plant Under Power
(2) MACHINES AVAILABLE

This machine is listed for sale by Prestige Equipment located in Melville, New York
