Reference #32242

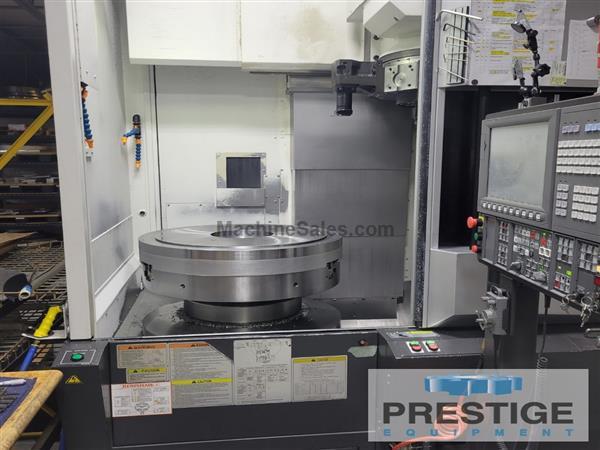

Okuma V920EX CNC Vertical Turning Center

FEATURES:
Okuma OSP-300LA CNC Control
32" Dia. Kitagawa 3-Jaw Power Chuck
C-Axis Table
12-Station Turret with Milling
8-Station ATC for Capto C6 Tooling into 1-Station on Turret
High Speed Torque Spindle
Touch Setter Probe
Renishaw Auto Gauging
High Pressure Through Spindle Coolant
Losma M2 Mist Collector

CAPACITY:
Table Diameter ........................ 32"
Max. Turning Diameter ................. 36.22"
Max. Work Piece Height ................ 33.85"
X-Axis Stroke ......................... 19.09"
Z-Axis Stroke ......................... 33.86"
C-Axis, Indexing ...................... .001 degrees
Table Speed, 2-Ranges ................. 10-1,000 RPM
Table Motor .......................... 50 HP / 60 HP
Milling Spindle Speed ................. 45-4,000 RPM
Milling Spindle Motor ................ 9 HP / 18.7 HP

EQUIPPED WITH:
Okuma OSP-300LA CNC Control
32" Dia. Kitagawa 3-Jaw Power Chuck
C-Axis Table
12-Station Turret with Milling
8-Station ATC for Capto C6 Tooling into 1-Station on Turret
High Speed Torque Spindle
Touch Setter Probe
Renishaw Auto Gauging
High Pressure Through Spindle Coolant
Losma M2 Mist Collector
Chip Conveyor


Note: Inspect Under Power In Aerospace Facility

This machine is listed for sale by Prestige Equipment located in Melville, New York
