Birmingham YCL920BD miniature Lathe - $RFQ

Item Number: #00035241

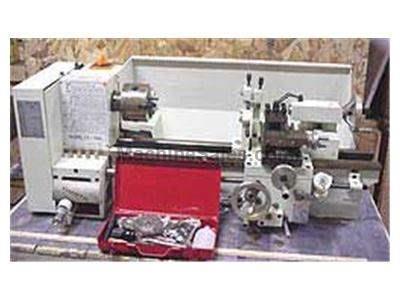

Birmingham YCL920BD miniature Lathe

Birmingham YCL920BD miniature Lathe
Price: $RFQ

Turning Machines/Lathes

Manufacturer:  Birmingham
Model:  YCL920BD
Condition: New

Max. diameter swing over bed: 9"
Max distance between centers: 20"
Max. diameter swing over cross slide: 5-5/16"
Spindle bore: 25/32"
Taper of spindle center: MT3 (Morse Taper#3)
6 Spindle speeds from 130-2000 rpm
Longitudinal feeds (3): 0.005-0.011" /rev
27 kinds of Inch threads from 8 to 56 threads per inch
11 kinds Metric threads from 0.5 to 3 mm
Max. travel of cross slide: 5"
Taper of tailstock quill center: MT2
Motor electrics: 3/4 HP, 115 Volts, 1 Phase
Machine weight: 248 Lbs. Imported from China.
