U.S. INDUSTRIAL 3-Axis Surface Toolroom Surface Grinder USG1022-AHD - $RFQ

Item Number: #00162819

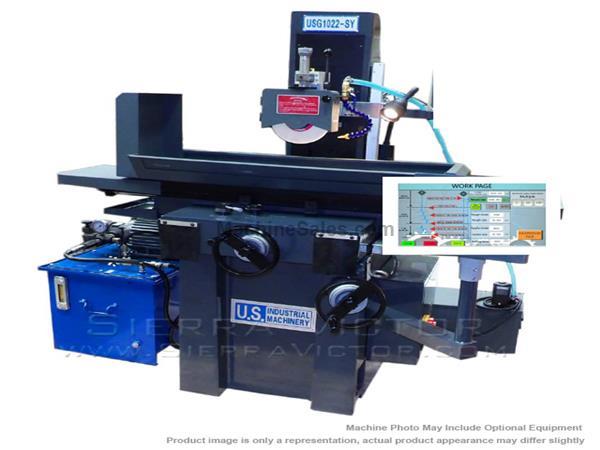

U.S. INDUSTRIAL 3-Axis Surface Toolroom Surface Grinder USG1022-AHD

U.S. INDUSTRIAL 3-Axis Surface Toolroom Surface Grinder USG1022-AHD
Stock Code:  USG1022-AHD
Price: $RFQ

Surface Recip. Table Grinders Vert. Spdl

Table width10"
Table length22"
Manufacturer:  U-S-Industrial
Model:  USG1022-AHD
Condition: New


This is a medium duty toolroom Surface Grinder with hydraulic reciprocation of table and electric motor power incremental setting crossfeed and automatic downfeed increment is programmed on touchscreen. This is a THREE-AXIS Automatic Surface Grinder.
PLEASE NOTE: Our machines are shipped without oil. Please refill the oil before operating the machine. Also remember that the machines must be anchored and leveled, or the warranty may be voided. Full 220V or 440V is required. Low voltage may hinder operation of or damage the machine.

Grinding wheel
Balancing base and arbor
Over wheel dresser w/diamond
Manual one-shot lube
Permanent Magnetic Chuck: 9.8” x 19.7”
Wheel flange
Toolbox and tools
Coolant system
Sino Two-axis digital readout

Two-Axis Readout Included: YES, on touch screen computer
Type of Operation: Hyd. table, elec. Cross and downfeed
Slideway Type: Double V Type Rail
Machine Lube System: Part of Hydraulic System
Function of table reciprocation: Hyd and electric, full 3-axis auto
Wheelhead movement up/down: handwheel and power elevation
Wheelhead dial graduation: .0002"
Perm mag chuck included: 9.8" x 19.7"
Pole spacing of mag chuck: .125"
Table/cross travel max: 22" x 10.2"
Cross dial graduation: .0005"
Grinding wheel supplied: 8" x 3/4" -1.25" hole
Dist under wheel to chuck: 10"
Wheel balancing arbor/base: Yes - included
Over wheel diamond dresser: Yes - included
Worklight: included
Spindle RPM: 3360
Hydraulic System: 2 HP - 21 gallons
Coolant Pump - Tank size: 40 watt - 9 gallons
Full load amps @ 220 Volts: 22
Parallelism & Flatness Accuracy: <0.0008"
Max. Travel (Longitudinal x Cross): 22" x 10.2"
Max. Distance Spindle Center To Table: 17.7"
Max Grinding Wheel (ODxTxID)(Supplied with one 7” x 1/2” grinding wheel): 8” x 3/4” x 1-1/4”(200mm x 31.75mm x 20mm)
Grinding Wheel speed: 3360 rpm
Spindle Motor: 2 HP, 220 or 440 Volts, 3 phase (please specify)
Hyd. unit Motor: 2 HP
Dimensions, crated for shipping: 48" W x 66.4" L x 73" T
Machine Weight (Gross Shipping): 2,300 lbs

Extra general purpose factory grinding wheel
Extra wheel flange

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.
