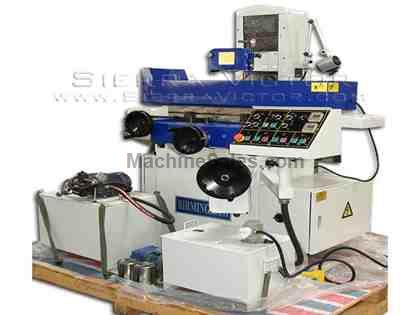

10" x 20" BIRMINGHAM® Precision 3-Axis Auto Surface Grinder
Surface Recip. Table Grinders Vert. Spdl
|Table width: ||10"
|Table length: ||20"
CALL FOR AVAILABILITY AND BEST PRICING!
Precision 3-Axis Auto, Surface Grinder with Chuck, Coolant
AHD means: Auto feed on transverse, hydraulic transmission on longitudinal, auto feed on vertical.
COLUMN: Enlarged, Double wall, Strong ribbed column, especially suitable for heavy duty grinding
CONSTRUCTION: Construction of table, saddle and base is casted with high grade casting iron, strongly ribbed.
SPINDLE: Enlarged spindle set is supported by 4 pieces of preloaded precision angular contact ball
bearings for heavy duty
SLIDEWAYS: Vertical, cross (double vees) and longitudinal (one vee & one flat) slideways are coated with Turcite-B, provides stable movement and durable accuracy
AUTOMATIC CONTINUOUS LUBRICATION SYSTEM: All slideways and screws are fully oiled by automatic continuous lubrication system to eliminate wears on slideways & screws.
CROSS FEED: Ball screw for cross travel, powered by AC Motor
VERTICAL FEED: Powered by servo motor
HYDRAULIC TABLE: Table speed ranges 5-25m/min. with rack and pinion table drive for hand operation
PROXIMITY SWITCH: Provide built-in-type (hidden) proximity switch, features safe and easy operation
TABLE SPEED CONTROL: Presettable hydraulic table speed control allows operator to pre set speed rate, enable to get same speed rate when engaging hydraulic table everytime.
HAND WHEELS: Zero-setting slip rings with vernier on vertical hand wheel and vernier on crossfeed hand wheel.
Grinding Wheel Flange
Wheel Balance Stand
Wheel Balance Arbor
Diamond Wheel Dresser
Wheel Flange Extractor
Working Light System
Full Length Splash Guard
Table Size: 9.84" x 19.69"
Max. longitudinal travel: 22.05"
Max. Cross Travel: 10.83"
Max. distance from spindle center to table: 17.72"
Magnetic chuck size: 9.84" x 19.69"
Speed of table longitudinal movement (in/min): 275" - 905"
Table transverse movement
Auto feed (in/min): 0.004" - 0.3"
Rapid speed (in/min): 39"
Feed of handwheel (in/div.): 0.0008"
Wheelhead vertical movement
Auto feed (in/stroke): 0.0002" - 0.002"
Rapid speed (in/min): 9.45"
Feed of handwheel (in/div.): .0002"
Speed (60 Hz): 3450 RPM
Size (OD X W X ID): 7.87" x 0.79" x 1-1/4"
Motor of spindle: 3 HP
Max. loading capacity of table (include magnetic chuck): 400 lbs.
Height of machine: 66"
Floor space (L x W): 91" x 63"
Gross weight: 3,970 lbs.
Package dimensions (L x W x H): 79" x 83" x 86"
Parallel wheel dresser
Fine Pole Electro Magnetic Chuck
Coolant and Dust Collection System
Coolant System with Paper Filter
Coolant System with Magnetic Separator
Coolant System with Magnetic Separator and Paper Filter
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
