12" x 24" Okamoto Surface Grinder Model ACC-12-24DX |
|
| Stock Code: |
EI3814 |
| Price: | $RFQ |
| Subcategory: | Surface Recip. Table Grinders Horiz. Spdl |
| Table width: | 12" |
| Table length: | 24" |
| Manufacturer: |
Okamoto |
| Model: |
ACC-1224DX |
| Condition: | Used |

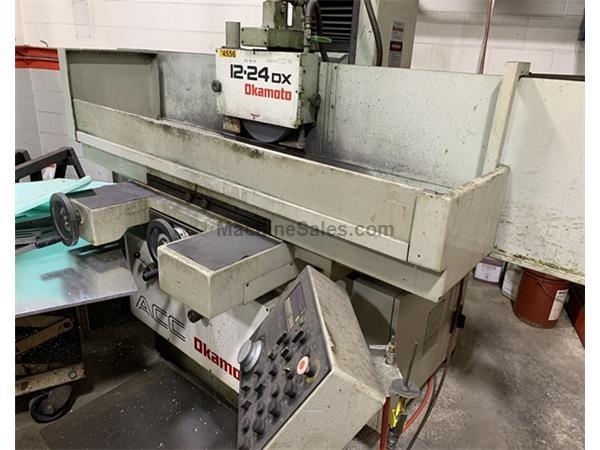

12" x 24" Okamoto Surface Grinder
Model ACC-12-24DX
Auto Incremental Downfeed
Inv# :
EI3814
Specifications:
Chuck Size: 12" x 24"
Longitudinal Travel: 29.5"
Cross Saddle Travel: 14"
Speed (Variable): 1 - 82 FPM
Cross Saddle Feed: 0.002" - 0.8 IPM
Cross Feed, Manual Hand Feed per REV: 0.25"
Graduation of Handwheel: 0.001"
Auto Incremental DownFeed Increments: 0.00005" to 0.0015"
Power Rapid Wheel Positioning Rate: 16 IPM
Grinding Wheel
Dimensions: 12" x 1.5"
Speed: 1,800 RPM
Horse Power: 5
Equipped With:
DX Programmable Incremental Downfeed
Dual Rate Downfeed Selectable (Course & Fine)
Digital Display for Vertical Position & Saddle Position
Sparkout Passes (o to 5) with Auto Table Park at Completion of Grind Cycle
Hydraulic Table Traverse
Automatic Cross-Feed
Coolant Filtration System
Auto Lubrication System
Dimensions (Approx): 107" (LR) x 75" (FB)
Weight (Approx): 5,300 Lbs.
*** Preliminary specifications are subject to verification and should only be used as a guide.
This machine is listed for sale by Blackhawk Machinery Corp.
located in ., Illinois
