SPECIFICATIONS
Platter Diameter 12.20 in
Max Weight on Platter (w/support) 435 lb
Max Weight on Platter (unsupported) 218 lb
Number of Std T-Slots 6 AT 60 DEGREES
Max Speed 75 DEGREES/SEC
Max Torque 300 ft-lbf
Runout Max 0.0010 in
Center Height 9.000 in
Backlash 30 arc-sec
Brake Torque @ 100 psi/6.9 bar 500 ft-lbf
Gear Ratio 72:1
Timing 2:1
Accuracy (+/-) +/- 15 arc-sec
Repeatability 10 arc-sec
Resolution 0.001 DEGREES
Worm Gear Dia 9.4 in
Max Rotation/Step (with rotary control) 999.999 DEGREES

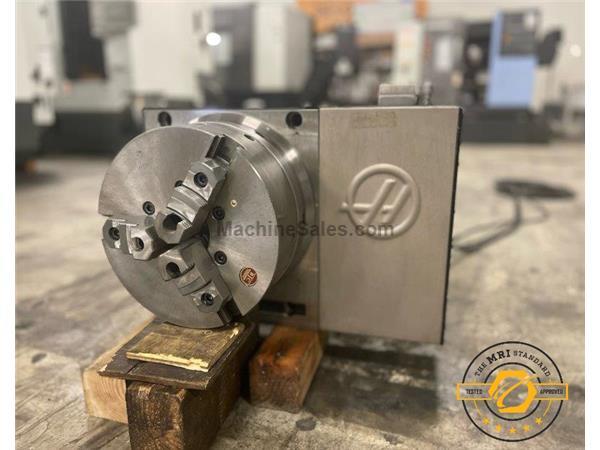

EQUIPPED WITH
SIGMA 5
12" MANUAL CHUCK

This machine is listed for sale by Machinery Resources International located in Simi Valley, California
