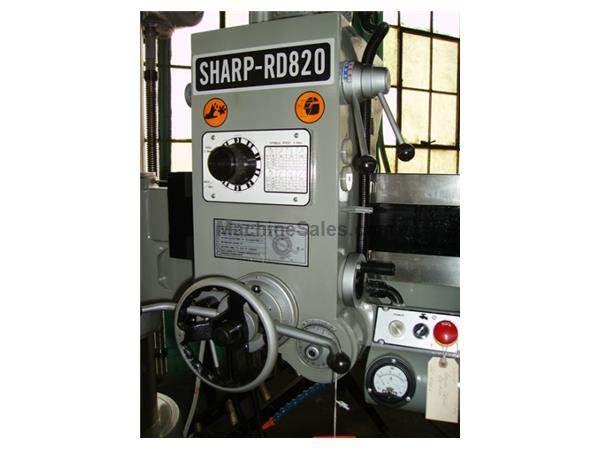

33.5" Arm 8.25" Column Sharp RD-820 RADIAL DRILL, 3 HP, #4MT, Power Elevation Clamping - $12,520

Item Number: #00019444
33.5&quot; Arm 8.25&quot; Column Sharp RD-820 RADIAL DRILL, 3 HP, #4MT, Power Elevation  Clamping

33.5" Arm 8.25" Column Sharp RD-820 RADIAL DRILL, 3 HP, #4MT, Power Elevation Clamping
Stock Code:  136881
Price: $12,520
Subcategory:

Radial Drills

Manufacturer:  Sharp
Model:  RD-820
Condition: Used

NEW SHARP 8.25" COLUMN, 33.5" ARM, RADIAL DRILL





 MODEL:  RD-820         **MADE IN TAIWAN**








SPECIFICATIONS


 Diameter of column: 8-1/4"


Distance from column surface to spindle center, max: 33-1/2"


Distance from column surface to spindle center, min: 8-5/8"


Travel of spindle head: 24-7/8"


Distance from base surface to spindle end, max: 47-5/8"


Distance from base surface to spindle end, min: 13-3/4"


Elevating height of arm: 25-9/16"


Effective area of table: 19-3/4" x 15-3/4" x 15-3/8"


Dimensions of base: 49-5/8" x 25-3/16" x 9/32"


Taper hole in spindle: #4MT


Stroke of spindle: 8-1/4"


RPM of spindle (RPM range x steps) 88 - 1500 x 12 steps


Feed of spindle (1 PR x steps): 0.002" x 0.006" x 3 steps


Main motor (hp): 3 hp


Elevating motor: 1 hp


Clamping motor for column and gear-box: manual clamp


Clamping motor for arm: manual clamp


Coolant pump: 1/8 hp


Measurement (L x W x H): 66" x 32" x 86"


Approximate shipping weight: 3,080 lbs.





CAST IRON


Drilling: 2"


Capacity tapping: 7/8"


Boring: 4-1/8"





STEEL


Drilling: 1-1/2"


Capacity tapping: 5/8"


Boring: 2-3/4"








FOR MORE INFORMATION: Call Kori at 973-497-7567
