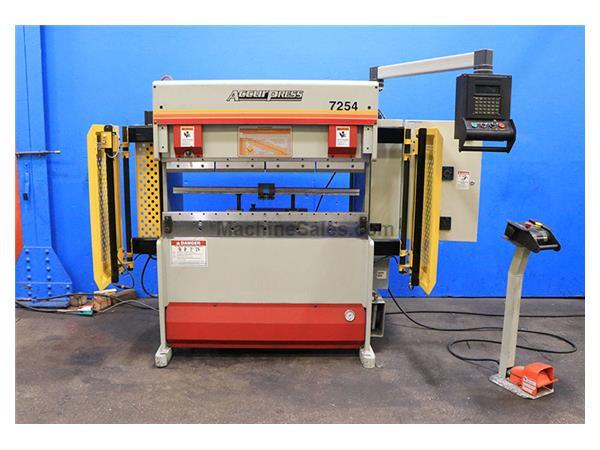

4' X 25 TON ACCURPRESS HYD. PRESS BRAKE
MODEL 7254 S/N 6823 NEW 2001
Capacity ............................... 25 Tons
Overall Die Length ..................... 51"
Distance Between Housings .............. 51"
Bending Capacity in Mild Steel ......... 12 Gauge
Stroke, Adjustable ..................... 6"
Open Height ............................ 12"
Closed Height .......................... 6"
Throat Depth ........................... 5.75"
Ram Speed, Approach .................... 200 IPM
Ram Speed, Work ........................ 28 IPM
Ram Speed, Return ...................... 300 IPM
EQUIPPED WITH
- 5 HP Main Motor - 460 volt
- Lower Die Holder
- Accurpress Pedestal Control with Foot Switch
- Accurpress 3-Axis ETS-250 CNC Control (X, Y & R)
- STI Micro Safe Light Curtain Series MC4200
Approximate Weight: 5,000 Lbs.
FOR MORE INFORMATION: Call Rick at 973-497-7560
