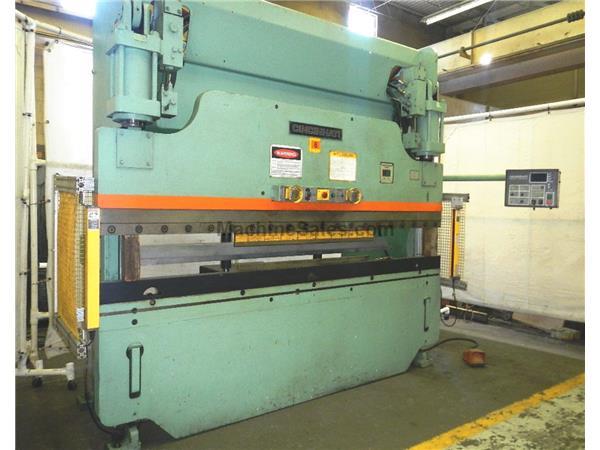

90 Ton 120" Bed Cincinnati 90CBIIx8 PRESS BRAKE |
|
| Stock Code: |
163601 |
| Price: | $39,500 |
| Subcategory: | Press Brakes |
| Year of Manufacture: |
1998 |
| Manufacturer: |
Cincinnati |
| Model: |
90CBIIX8 |
| Condition: | Used |
90 TON X 10' CINCINNATI HYDRAULIC PRESS BRAKE
MODEL 90CBIIX8 S/N 49939 NEW 1998
Capacity ............................. 90 tons
Bending capacity ..................... 10' x 12 gauge
..................... 6'8" x 3/16"
..................... 5' x 1/4"
Distance between housings ............ 8' 6"
Stroke ............................... 8"
Throat ............................... 7"
Overall die surface .................. 10"
Die space - open ..................... 15"
Closed ............................... 7"
Ram speed: Approach .................. 260 ipm
High ...................... 80 ipm
Medium .................... 20 ipm
Low ....................... 10 ipm
Return .................... 280 ipm
Back gauge range ..................... 24"
R-axis adjustment (manual) ........... 2" - 10"
Motor ................................ 15 HP
Approximate overall dimensions ....... 60 D x 120 W x 116 H
Approximate weight ................... 14,000 lbs.
Machine is equipped with:
- Cincinnati CNC 2-Axis Back Gauge and Ram Control
- Manual R Axis
- Lower die rail
- 3-speed (low / medium / high)
- Adjustable tonnage control
- Micrometer ram tilt adjustment
- Palm buttons mounted on machine face with E-Stop
- Remote foot pedal
FOR MORE INFORMATION: Call Rick at 973-497-7560
This machine is listed for sale by Machinery Values Inc.
located in Harrison, New Jersey
