SPECIFICATIONS
TONNAGE CAPACITY: 230
OVERALL LENGTH OF BED & RAM: 12'
DISTANCE BETWEEN HOUSINGS: 10' 6-1/2"
STROKE: 12"
OPEN HEIGHT: 17"
CLOSED HEIGHT: 7"
THROAT CLEARANCE: 18"
SPEEDS:
** HIGH APPROACH: 600 IPM
** VARIABLE FORMING: 1 TO 35 IPM
** VARIABLE RETURN: 1 - 430 IPM
RAM REPEATABILITY: (+-) 0.0002"
DISTANCE FROM FLOOR TO BED TOP: 36"
WIDTH AT TOP OF BED: 5-1/2"
PIT REQUIRED: NO
MOTOR: 25 HP
APPROXIMATE SHIPPING WEIGHT: 30,200

EQUIPPED WITH

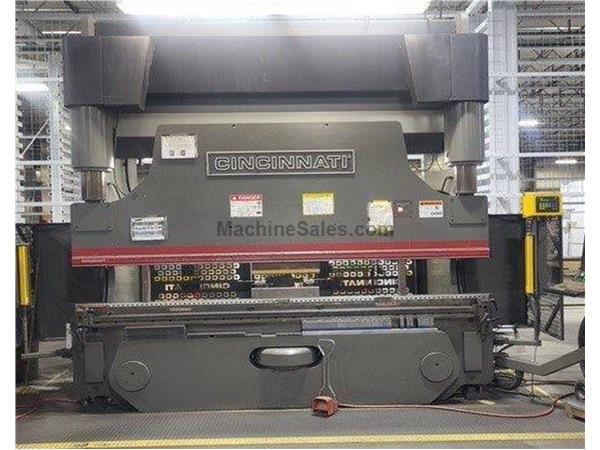

CINCINNATI PC BASED TOUCH SCREEN CONTROL
GRAPHICAL TOOL LIBRARY
6-AXIS LT PROGRAMMABLE BACK-GAUGE (X1-X2, Z1-Z2, R1-R2)
DUAL SCALE PROGRAMMABLE RAM: (Y1-Y2)
PROGRAMMABLE AUTO CROWN
WILSON HSC-W UPPER HYRDRAULIC CLAMPING
CINCINNATI QUICK TOOL CHANGE LOWER CLAMP
EXTENDED STROKE: 12"
ADDITIONAL FOOT-SWITCH
PROGRAMMABLE PALM-BUTTON/FOOT-SWITCH
INTERLOCKED STEEL END GUARDS
MERLIN 3000 PRESENCE SENSING SAFETY GUARD
FAST SETUP WORK SUPPORTS

This machine is listed for sale by Machinery Resources International located in Simi Valley, California
