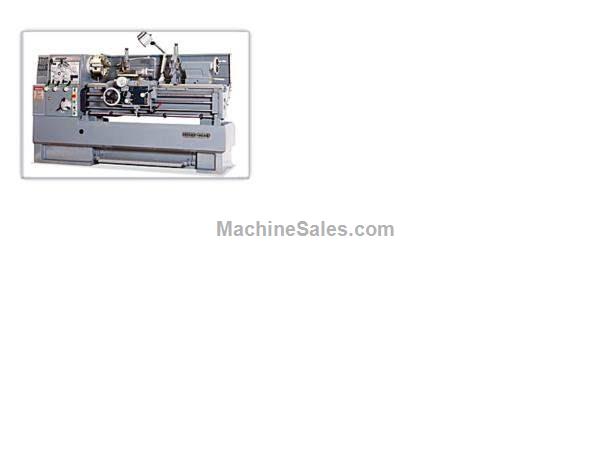

18" Swing 80" Centers Sharp 1880L ENGINE LATHE, D1-8 Camlock with 3-1/16" bore; precision lathe - $22,500

Item Number: #00019427
18&quot; Swing 80&quot; Centers Sharp 1880L ENGINE LATHE, D1-8 Camlock with 3-1/16&quot; bore; precision lathe

18" Swing 80" Centers Sharp 1880L ENGINE LATHE, D1-8 Camlock with 3-1/16" bore; precision lathe
Stock Code:  136733
Price: $22,500
Subcategory:

Press Brake - New Standard Tooling / Dies

Manufacturer:  Sharp
Model:  1880L
Condition: Used

NEW SHARP  MODEL: 1880L PRECISION LATHE


  MADE IN TAIWAN





STANDARD EQUIPMENT:



  • 3-Jaw Chuck 10”

  • Coolant System

  • Halogen Work Light

  • Face Plate (16”)

  • Steady Rest (1/2” – 6”)

  • American Tool Post

  • Full Length Splash Guard

  • Follow Rest (0.59” – 3.15”)

  • Longitudinal Carriage Stops

  • User can choose either 220V or 440 V application. 575 V needs an optional transformer

  • Tool Kit includes:



Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip Screw Driver, Flat Head Screw Driver, Oil can, Grease Gun, Rear Way Cover Bracket, 2 sets of dead center, Pin for Indicator, Can of Paint





FEATURES


D1-8 Camlock



  • 3” Spindle Bore

  • Direct Selection for Inch/Metric Threads

  • One Piece Cast Meehanite Bed

  • 7-1/2 Hp Spindle Motor

  • 12-Speed Gear Head (40-2,000 Rpm)



**Digital Variable Speed (DVS) Now Available!   (LV TYPE)





SPECIFICATIONS:


Capacity




Swing Over Bed: 18.5”


Swing Over Cross Slide: 11”


Center Height: 9.25"


Swing Over Gap: 27- 1/8”


Width of Gap: 11.75”


Distance Between Centers: 86.6”





Headstock


Spindle Nose Type: D1-8 Camlock


Spindle Bore: 3-1/16”


Spindle Speeds (12 Speed): 40-2,000 rpm


Taper of Spindle Bore: MT#6


Taper of Center: MT#5







Threads and Feeds




Longitudinal Feeds – in/rev (18): 0.002 - 0.032”


Cross Feeds – in / rev {#}:  0.0001 –0.0094” {12}


Inch Threads (#): 4-56 tpi {36}


Metric and Module Threads {#}: 0.5-7mm {17}


D.P. Threads (36):  4-56 mm


Leadscrew Pitch, Diameter: 4 tpi, 1-3/8”







Carriage




Cross Slide Travel: 9-7/8”


Compound Rest Travel: 5.3”


Compound Width: 5.0”







Bed




Bed Length: 110”


Bed Width: 11-3/4”







Tailstock




Quill Travel (graduated): 5-1/2”


Quill Diameter: 2-11/16”


Quill Taper: MT#4







General




Spindle Motor (220V or 440V, 60, 3): 7-1/2 hp


Net Weight (approx.): 5,425 LBS


Dimensions (L X W X H): 134.6” X 21” X 48”


Standard Color: Gray







Electrical:




Voltage          230V & 460V


Phase          3 phase







Total Power Consumptions




¨ 230V                              8KVA/25 amps


¨ 460V                             8KVA/12.5 amps
