Machine Tools > Tooling, Parts, Accessories > Press Brake - New Standard Tooling / Dies    < Back

0.5" Cap. 120" Width Birmingham H-10130-C NEW SHEAR, 1/2" x 10' Hydraulic; Made in China - $38,800

Item Number: #00019047
0.5&quot; Cap. 120&quot; Width Birmingham H-10130-C NEW SHEAR, 1/2&quot; x 10' Hydraulic; Made in China

0.5" Cap. 120" Width Birmingham H-10130-C NEW SHEAR, 1/2" x 10' Hydraulic; Made in China
Stock Code:  138053
Price: $38,800
Subcategory:

Press Brake - New Standard Tooling / Dies

Manufacturer:  Birmingham
Model:  H-10130-C
Condition: Used

NEW BIRMINGHAM 10' x 1/2" HEAVY DUTY HYDRAULIC SHEAR


MODEL: H-10130-C          MADE IN CHINA

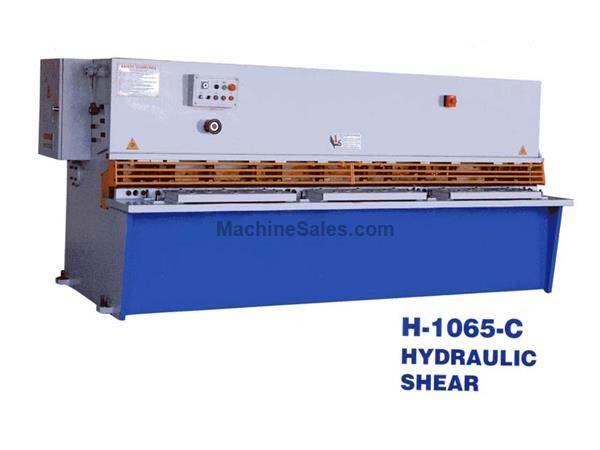

Note: Images shown are of similar model H-1065-C








SPECIFICATIONS:


Capacity: 10' x 1/2"


Shear angle: 1 deg. 30'


No load strokes per minute: 14


Backgauge Range: 3/4" - 32"


Main motor: 25 hp


Table Height: 31 7/8""


Oil Tank Capacity: 106 gal


Overall Size:  155" x 71" x 77"


Machine Weight: 23,810Lbs








FEATURES:


High Carbon, High Chrome Shear Blades


Manual Quick Change Blade Gap Adjustment


E21S Front controlled Power Backgauge


Hydraulic, Electrical Overload Protection


Automatic Swing - up Backgauge


Swing Beam Design


Operator Control Console


Low Noise Gear Pump


Pressure Sensing Hold-Downs


Hold-Downs Faced with Anti-Mar Neoprene


Shadow Lighting


Stroke Counter


Electric Stroke Adjustment


Blade Guard, Micro Switch Protection


Bolt On Table Segments


1" Ball Transfers


Squaring Arm, 43 1/2" from Blade to End


3 Support Arms





OPTIONAL EQUIPMENT:


Change to 36"/40" power back gauge


6' squaring arm


8' squaring arm


10' squaring arm


FOR MORE INFORMATION: Call Terry at 973-497-7612
