FEATURES:

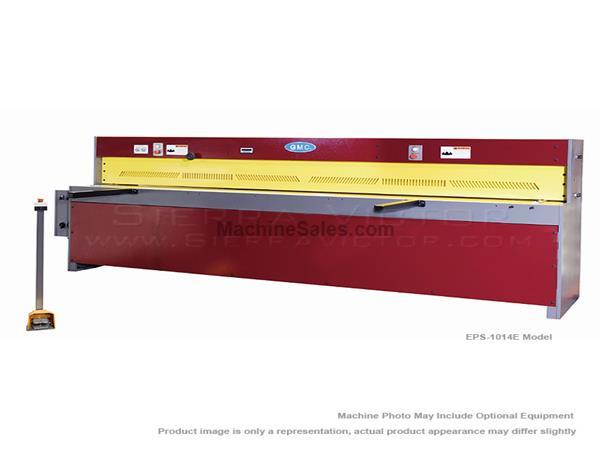

Shop our 10 foot mechanical shears that are capable of cutting up to 14 gauge mild steel and 18 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.
ISO 9001 certified
American design and Taiwan quality machine
HD all steel construction for maximum rigidity
Precision driven gearbox
Full length 26 strokes per minute
60” long squaring arm with inch / mm scale
spring hold-downs
high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts

DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported

STANDARD EQUIPMENT:
26" manual back gauge with one side operated handwheel.
60" long squaring arm with inch / mm scale, mounted on right side of the table
2 each 24" front support arms
full length finger guard
Removable safety foot pedal control
One set of upper & lower blades

SPECIFICATIONS:
Cutting Capacity
Mild Steel: 10 ft x 14 Ga.
Stainless Steel: 10 ft x 18 Ga.
Soft Aluminum: 10 ft x 10 Ga.
Min. Thickness: 26 ga.

Blade Length: 10 ft 1 in.
Strokes per minute: 26
Worktable height: 30-1/2 in.
Front support arm: 24 in.
Back gauge: 26 in. Manual back gauge
Blade rake angle: 2.0 degree
Main Motor: 7-1/2 HP, 220V/25A - 440V/15A, 3 Phase
Machine Weight: 7,280 lbs.
Machine dimensions: 147 x 57 x 53 in.

OPTIONAL ITEMS:
Safety fence for enclosure of the back side of the machine - Call for Price

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

This machine is listed for sale by Sierra Victor Industries located in Port Orange, Florida
