GMC EPS-0610M 6 ft x 10 ga. Mechanical Shearing Machine - $RFQ

Item Number: #00158871

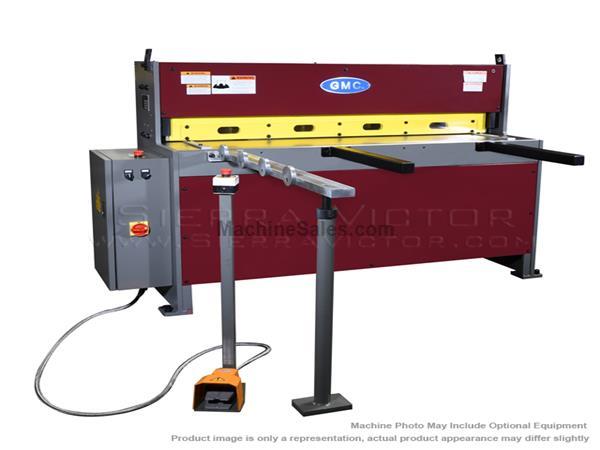

GMC EPS-0610M 6 ft x 10 ga. Mechanical Shearing Machine

GMC EPS-0610M 6 ft x 10 ga. Mechanical Shearing Machine
Stock Code:  EPS-0610M
Price: $RFQ
Subcategory:

Power Squaring Shears (Ga)

Maximum thickness10Ga
Cutting length72"
Manufacturer:  Gmc
Model:  EPS-0610M
Condition: New
Play YouTube Video

CALL 386-304-3720 FOR AVAILABILITY

FEATURES:
Our 6 Ft Mechanical Shearing Machine - EPS-0610M mechanical metal shearing machine is rated to shear up to 72" metal steel sheets at up to 30 strokes per minute. With an array of features, quickly adjust your backgauge, precision driven gear box, all electric low maintenance design, will add value to any fabrication machinery shop.
ISO 9001 certified
American design and Taiwan quality machine
HD all steel construction for maximum rigidity
Precision driven gearbox
Full length 30 strokes per minute
60” long squaring arm with inch / mm scale
spring hold-downs
high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts

DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

STANDARD EQUIPMENT:
26" manual back gauge with one side handwheel
60" long squaring arm with inch / mm scale, mounted on right side of the table
2 each 24” front support arms
full length finger guard
Removable safety foot pedal control
One set of upper & lower blades

SPECIFICATIONS:
Cutting Capacity
Mild Steel (hot roll) - Tensile 60,000PSI: 6 ft x 10 Ga.
Stainless Steel - Tensile 85,000PSI: 6 ft x 14 Ga.
Soft aluminum - Tensile 28,000PSI: 6 ft x 1/4 in.
Min Thickness: 22 Ga.

Blade Length: 80 in.
Strokes per minute: 28
Worktable height: 32 in.
Front support arm: 36 in.
Back gauge: 26 in. Manual back gauge
Blade rake angle: 2.5 degree
Main Motor: 7-1/2HP, 3 Phase 25A
Prewired: 220VAC (15A/440VAC optional)

Machine Weight:5,550 lbs.
Shipping Weight: 5,650 lbs.
Machine Dimensions: 100 x 43 x 68 in.
Shipping Dimensions: 100 x 43 x 68 in.

OPTIONAL ITEMS:
Safety fence for enclosure of the back side of the machine - $CALL

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
