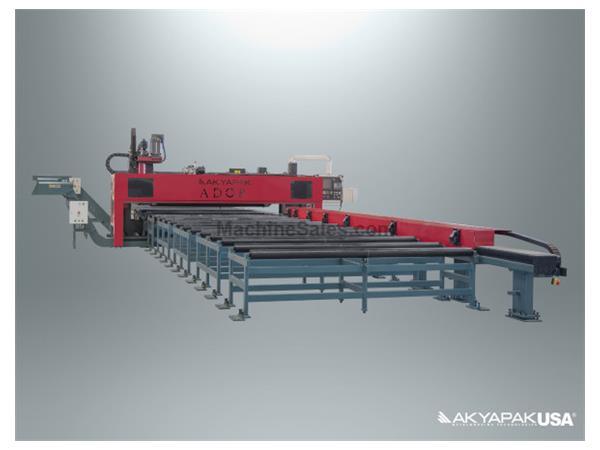

Best for heavy-duty drilling and cutting jobs in various metalworking industries. Available in stock! Distributed by Provetco Technology.

Technical Specifications:

Entire system control: CNC (Mitsubishi or Siemens)
Spindlemotor and all axial engines: Servomotor
Spindlemotor: 22 kW / 140 Nm | 30 HP / 103 lbf.ft
Spindlemotor Torque: 280 Nm | 206 lbf.ft
Drilling capacity: 10 – 40 mm | 23/8″ – 1-9/16″
Screw cutting capacity: max. M24
Inner cooling carbide drill usage: Yes
Set inner cooling: Standard, pulverized pressed air and boron water (carbide yip drills)
Spindle and Cutting Units Movement Bedding (horizontal / vertical): Preloaded lineer units
Movement forwarding system: Preloaded ball screws / nut system
Marking by scrapping: Yes
Automatic tool changing unit: Yes
ATC Capacity: 6 Tools
Plate positioning weight: max. 7.500 kg | 16.500 lbs
Suitable sizes: 3000*3200*100 mm 3000*12000*26 mm | 9,8′ x 10,5′ x 4″ 9,8′ x 40′ x 1″
Plasma cutting capacity: max. 60 mm (30 mm by explosding) | max. 2-1/2″ (1-1/4″ piercing)
Oxy cutting capacity: max. 100 mm | max. 4″
Oxy and plasma slag and powder collection plate: Yes
Oxy and plasma powder filtration unit: Yes
Rasping collection plate (wheeled): Yes
Plate application system: Servoengine + Reductor / Pinion + Krameyer gearing system
Plate blockage: Hydraulic remote controlled extrusion jaws

This machine is listed for sale by PROVETCO TECHNOLOGY located in Cedar Park, Texas
