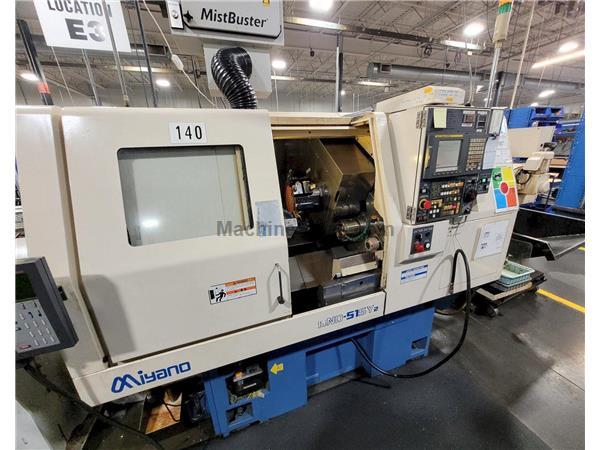

Miyano BND-51SY2 CNC Lathe, Fanuc 18i, Live Tooling, Sub Spdle, LNS Barfeed, 20HP, 2007 |
|
| Stock Code: |
56152 |
| Price: | $RFQ |
| Subcategory: | OR Laser |
| Year of Manufacture: |
2007 |
| Manufacturer: |
Miyano |
| Model: |
BND51SY2 |
| Condition: | Used |
CNC Control
yes
Type of CNC Control
Fanuc 18i-TB
Number of Axes
6
Number of Spindles
2
Spindle Bore
2 inches
Max. Turning Length
6.5 inchs
Chuck Size
6 inch
Spindle Nose
A2-6
Max. Turning Diameter
2 inches
B1 Axis
10 inch
C1 Axis
360000 degrees
C2 Axis
360000 degrees
X1 Axis
2 inches
Y1 Axis
Optional - Yes
Z1 Axis
4 inches
Spindle Speed Range
53-4000 RPM
No. Positions on Turret
12
Turret Live Tooling Positions
6 Rotary
Sub Spindle Chuck Size
5 inches
Sub Spindle Nose
A2-6
Sub-Spindle Speed Range
150-4000 RPM
Milling Spindle Speed Range
to 4050 RPM
Machine Cutting Hours
16606 Hours
Live Tooling Horsepower
1.5 HP
Sub-Spindle HP
7.5 HP
Spindle HP
20 HP
Dimensions
98" L x 62" W x 67" Ht.
Machine Weight
8810 Lbs.
Fanuc 18i-TB Control6" Chuck5" ChuckMisc. ToolingMisc. Live ToolholdersLNS Lift Style Magazine BarfeedHigh Pressure CoolantCoolant SystemChip ConveyorManuals/Documents
This machine is listed for sale by Orca Machine Tools, Inc.
located in Fridley, Minnesota
|
