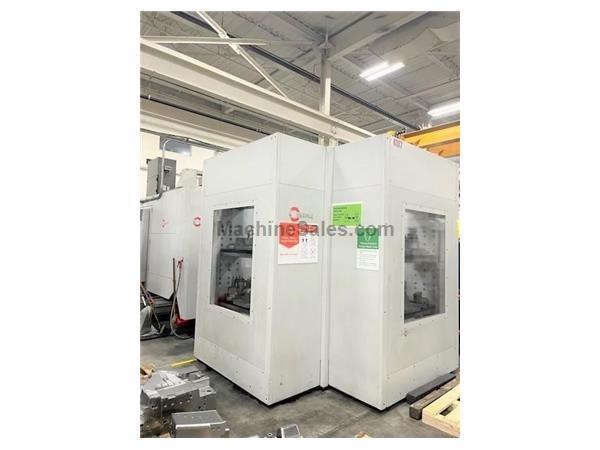

Hermle C42 5-Axis VMC, Heidenhain TNC640, 18K RPM, 18 Pallets, HSK63, 233 ATC, 42kW HP, (2017) |
|
| Stock Code: |
56127 |
| Price: | $RFQ |
| Subcategory: | OR Laser |
| Year of Manufacture: |
2017 |
| Manufacturer: |
Hermle |
| Model: |
C42 |
| Condition: | Used |
CNC Control
yes
Type of CNC Control
CNC ( Heidenhain TNC 640 CNC Control )
# Axis
5
X
31.49 inches
Y
31.49 inches
Z
21.65 inches
Spindle Speeds
18000 RPM
Spindle Taper
HSK-A63
Table Swivel Range +/-
130 Degree
Table A-Axis Speed
25 RPMs
C-Axis Speed
35 RPMs
Max. Turning Table Load
3,087 Lbs
Rapid Linear Traverse
X-Axis 45 M/Min , Y-Axis 45 M/Min , Z-Axis 40 M/Min
Max Vert Table Clearance
27.5"
Max. Workpiece Diameter
800 mm ( 31.49" )
Max. Workpiece Height
550 mm ( 21.65" )
Spindle Motor HP
56 HP
Table W & L
16" x 16"
Tool Changer
233 Tools
Weight
27000 pounds
Equipped With: Heidenhain TNC 640 CNC Control(18) PalletsOne-Sided Drive Trunnion Type TableHS Flex OptionRobot System with Pallet Racks233 Position Tool ChangerCoolant Through Spindle (1000 PSI)Part Probe Capable
This machine is listed for sale by Orca Machine Tools, Inc.
located in Fridley, Minnesota
|
