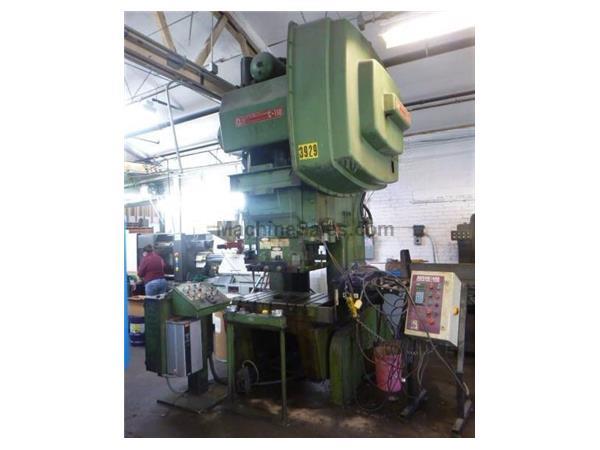

110-Ton Bliss C-110 Single Crank Back Geared OBI Press |
|
| Stock Code: |
pp1344 |
| Price: | $RFQ |
| Subcategory: | OBI Presses |
| Year of Manufacture: |
1980 |
| Manufacturer: |
Bliss |
| Model: |
C-110 |
| Condition: | Used |
Capacity
110-Tons
Stroke
6”
Speed (Variable)
30 to 60 SPM
Shut Height Over bed (SDAU)
17”
Slide Adjustment (Pneumatic)
4”
Slide Face Area (T-Slotted)
28” x 21”
Stem Hole in Side
3-1/8” Diameter x 3” Depth
Bed Area
42” x 27”
Bolster Plate Thickness
4”
Main Drive
10 HP
Electrics
3/60/460V
Approx. Dimensions
80” LR x 114” FB x 149” H
Approx. Weight
30,000 Lbs.
EQUIPPED WITH:Operators Control Console. Inch - Single or Continuous Selector. Hand–Foot Selector. T-Stand with Dual Palms. Pneumatic Slide Adjustment. Danfoss Variable Speed Drive. Air Clutch and Brake. 42
x 27
x 4
Thick Bolster Plate. Air Counterbalance. Auto Lubrication.
**Note: Feed Equipment in Photos Not Included. **
This machine is listed for sale by Adams Machinery Company
located in Lake Bluff, Illinois
