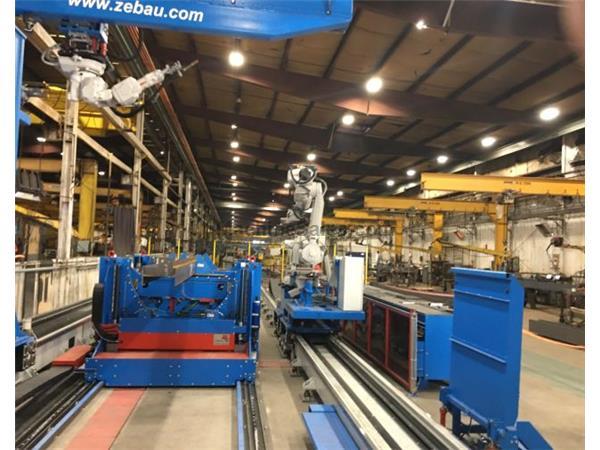

ZEMAN Z6 (SBA) STEEL BEAM ASSEMBLY WELDING CELL
S/N: SBA 532.605, MFG: 2019, STOCK NO: 87373
CAPACITIES:
BEAM SIZES:
HEIGHT: 150 MM MIN 1100 MM MAX
WIDTH: 80 MM MIN 500 MM MAX
LENGTH: 3000 MM MIN 12000 MM MAX

BEAM TYPES:
H BEAMS 150 MM MIN, 1100 MM MAX
WELDED H BEAMS: YES
CORRUGATED SIN BEAMS: YES (OPTIONAL)
RECTANGULAR/SQUARE TUBES: 80 MM X 80 MM MIN, 500 MM X 500 MM MAX
U-PROFILES: YES
TAPERED H BEAMS (OPTIONAL): 250 MM MIN, 1000 MM MAX

WEIGHT LIMITS KG:
ADD PARTS 0 KG MIN, 200 KG MAX
BEAM WEIGHT 0 KG MIN, 6000 KG MAX

DIMENSIONS OF ADDED PARTS IN MM:
PLATES: 50 MM X 100 MM X 3 MM MIN
800 MM X 1400 MM X 60 MM MAX

CORNER FRAME APPLICATION: YES (OPTIONAL)
PROCESSING SPEEDS: 250 MM/SEC, 10" PER SEC.
WELDING: CLOSE UP SPOT WELDS
CURVED WELDING RADIUS
WELDER: FRONIUS TPS 500i
FEATURES: ABB ROBOTS (2) 500 LB. PART CAP.
SBA PARTS LASER SCANNER
CONTROL: SIEMENS
SOFTWARE: SIEMENS SIMATIC S7 PLC

This machine is listed for sale by Pearl Equipment Co. located in Nashville, Tennessee
