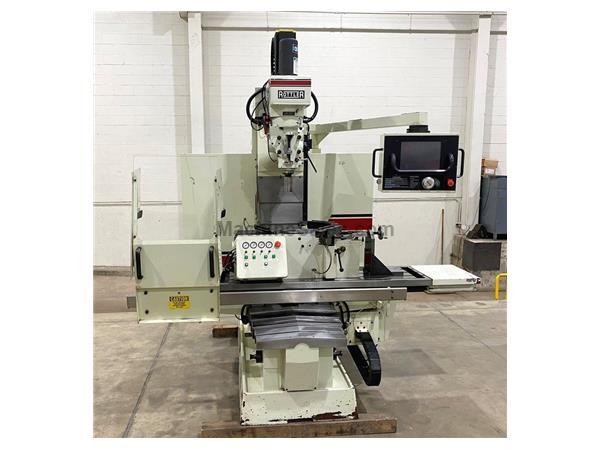

New - 2004
Serial No. 65097

SPECIFICATIONS:
Table:
- Size............60" x 17"
- T-Slots (no. x width x distance)............3 x 0.63" x 3.94"
Travels:
- X-Axis (Horizontal)............40"
- Y-Axis (In/Out)............20"
- Z-Axis (Vertical)............26"
- Spindle (Manual)............5"
- Spindle Nose to Table............4" - 30"
- Spindle Center to Column............20.9"
Spindle:
- Taper............NMTB40
- Diameter............4.13"
- Rotation Speed............1 - 1800 RPM
- Head Tilt............90° (Right and Left)
Performance:
- Rapid Travel - X & Y............200 IPM
- Rapid Travel - Z............150 IPM
- Feed Rate............0.001" - 0.060"
- Repeatability............±0.0002"
Motors:
- Spindle............5 HP, 150 In. Lbs.
- 3-Axis............40 In. Lbs.
General:
- Floor Space - Catalog............131"L x 81"W x 104"H
- Machine Weight - Catalog............8,000 Lbs.
- Electrical Requirement............208/240V/1Ph/60Hz
- Air Requirement............100 PSI

EQUIPPED WITH:
Touchscreen control for programmable automatic machining
Windows based CNC control with Fully Programmable Cycles:
* Bore Centers, Exact Depth, Speed, Feed, etc.
* Bores Complete Bank in Automatic Cycle
* Lower Bore Relief, Off Center Boring for Honing Clearance
* Surfacing - Multiple Pass Programmable for Roughing & Finishing. Can Remove any Amount of Material in One Automatic Cycle.
* Lifter Bore machining - bore housings and ream bushes to exact final size.
* Automatic line bore cycle completes all main bearing housings to within .0002"
* Face Main line Thrust bearing Faces square to Crankshaft centerline
* machine a Radius for Stroker Crank Connecting Rod and Bolt Clearance
* FLEXCAM CNC program allows G Code programming and File Transfer with CAD/CAM programs.
Variable speeds & feeds, AC Servo Brushless Motors and Axis Motors, Precision ball screws

(Optional Equipment Included) Connecting Rod Fixture for boring small and large ends of Rods and Controlling Center to Center Distance.
Power Draw Bar

*Preliminary specifications, subject to verification.

This machine is listed for sale by Liberty Machinery Company located in Lincolnshire, Illinois
