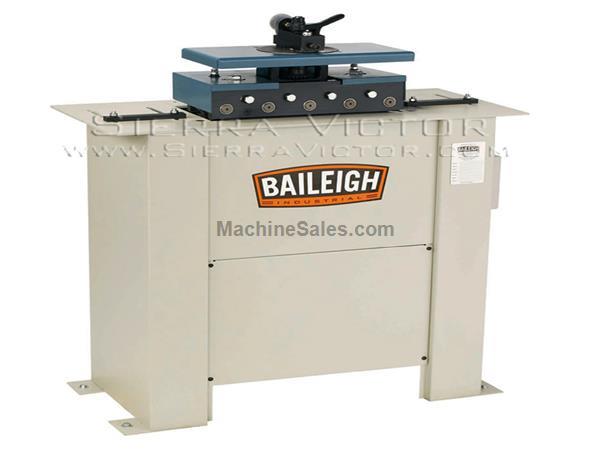

BAILEIGH Lock Former Pittsburgh Machine LF-20
CALL FOR BEST PRICING!
HVAC shops demand a lot out of their equipment, so when Baileigh Industrial developed the LF-20 Pittsburgh machine, they knew it had to be able to last. The LF-20 Pittsburgh machine is made from only the highest quality components which include an all steel forming head and hardened with ground shafts. The steel forming rolls on this Pittsburgh machine are case hardened using matching cut gears and needle bearings throughout for years of use and abuse.
Running on 220 volt single phase power the Baileigh Industrial LF-20 is great for making Pittsburgh joints on sheet metal up to 20 gauge . Using approximately 1" of material for each lock, the LF-20 has pocket depth ranges from 5/16" to 3/8", so material waste is kept to a minimum.
The LF-20 lock former from Baileigh Industrial also has other attachments available, each creating a unique joint. These optional attachments are double seam, drive cleat, flange attachment, and right angle. This do it all is a must in any shop.
Capacity (mid steel): 20 ga.
Depth of Pocket (adjustable): .314" up to .375"
Speed: 25 feet/min
Motor: 1 HP
Power Requirement: 220V / 1-phase
Shipping Dimensions (L/W/H): 60” / 44” / 68”
Shipping Weight: 320 lbs
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
This machine is listed for sale by Sierra Victor Industries
located in Port Orange, Florida
