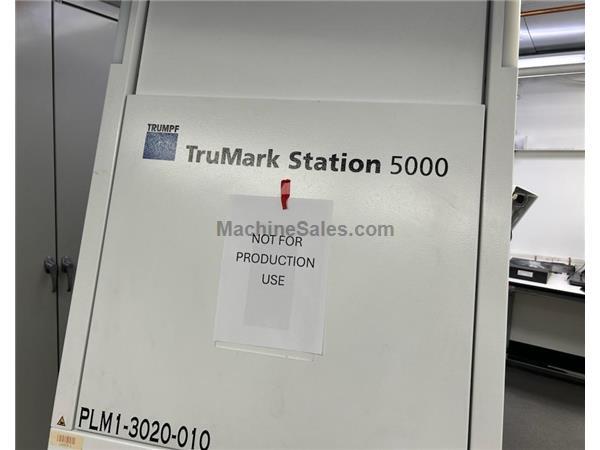

Trumpf TruMark Station 5000 Laser Engraving Machine, Trumpf 3000 Laser Head, New 2013 |
|
| Stock Code: |
56264 |
| Price: | $RFQ |
| Subcategory: | Laser Marking Machines |
| Year of Manufacture: |
2013 |
| Manufacturer: |
Trumpf |
| Model: |
TRUMARK STATION 5000 |
| Condition: | Used |
CNC Control
yes
Type of CNC Control
PC Computer
Laser Medium:
YAG
Laser Class
1
Workpiece Specifications - (W x H x D)
26.77" (680mm) x 19.68" (500mm) x 27.55" (700mm)
Z-Axis Travel
19.68" (500mm)
X-Axis Travel
11.81" (300mm)
Y-Axis Travel
11.81" (300mm)
C-Axis Travel
360 Degrees
C-Axis Rotation Speed
TBD
Z Traverse Speed
1.5m/min
X Traverse Speed
6m/min
Y Traverse Speed
6m/min
Wavelength
1060 =/- 3 nm
Pulse repetition frequency
cw, cwm, 1 - 1000 kHz
Adjustable pulse duration
9 - 200 ns
Max. size of marking field
290 x 290 mm2
Min. focal Diameter
41 um
Max. internal focal position adjustment
=/- 60 mm
Beam quality M2/Instensity allocation
2.0 / low order mode
Scanner calibration accuracy
=/- 50 um
Electric Voltage
115V - 230V
Electrical Frequency
50 Hz - 60 Hz
Dimensions of Work Station (W x H X D)
33.85" (860mm) x 78.74" (2000mm) x 51.57" (1310)
PC Computer with Keyboard and MouseLaser Marking SoftwareTruMark 3000 Laser GeneratorWork TableFume CollectionEncloserSpecifications are Preliminary and Subject to the Purchasers Verification.
This machine is listed for sale by Orca Machine Tools, Inc.
located in Fridley, Minnesota
