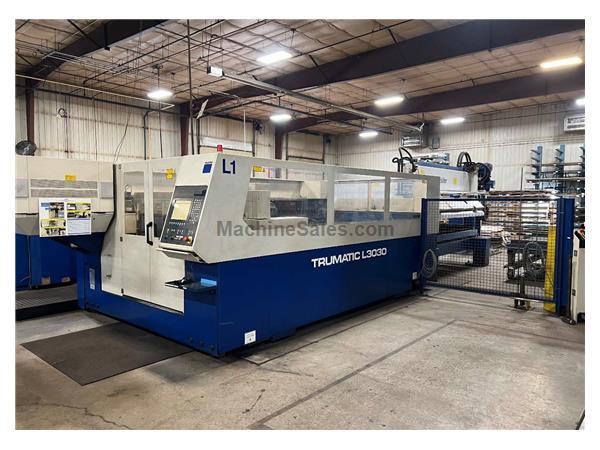

2004 Trumpf TruMatic L-3030 CNC Laser Cutting System with LiftMaster Automation

4000-Watt CO2 Laser System





The Trumpf TruMatic L-3030 is a heavy-duty CNC laser cutting system designed for precision sheet metal processing in fabrication and manufacturing environments. This system features a 4000-Watt Trumpf CO2 resonator, Siemens control, and an integrated Trumpf LiftMaster automatic load/unload system for increased productivity and reduced material handling time.



This machine was purchased new by the current owner in 2004, with ownership verification available through Trumpf serial number records. Internal and Trumpf maintenance records are available. The system was professionally decommissioned by a Trumpf-authorized technician and includes available spare parts.

Machine is currently disconnected from power but was professionally taken offline.

Specifications:

Manufacturer: Trumpf

Model: TruMatic L-3030

Year: 2004

Laser Type: CO2 Laser

Laser Power: 4000 Watts

Control: Siemens CNC Control

Automation: Trumpf LiftMaster Load/Unload System



Working Capacity:

X Axis Travel: 120"

Y Axis Travel: 60"

Z Axis Travel: 5"

Maximum Sheet Weight: 1,562 lbs



Performance:

Beam On Time: 37,506 Hours

Laser On Time: 70,659 Hours

Maximum Positioning Speed (Axis Parallel): 2,400 IPM

Maximum Positioning Speed (Simultaneous): 2,240 IPM

Smallest Programmable Increment: 0.0004"



Machine Dimensions:

Length: 366"

Width: 181"

Height: 79"

Approximate Weight: 25,300 lbs



Equipped With:

Siemens CNC Control

4000-Watt Trumpf Resonator

Trumpf LiftMaster Automation

Chiller

Dust Collector

Available Spare Parts Included (as available)



Additional Information:

Purchased new by current owner

Ownership traceable through Trumpf serial records

Internal maintenance records available

Trumpf service history available

Software/license not transferable

Professionally decommissioned by Trumpf-authorized technician

Machine located near loading dock with crane access

Seller can provide crane and loading dock access only

Buyer responsible for rigging, disassembly, and transportation

Rigger recommendations available upon request


Machine is currently offline and not under power. Inspection arrangements may be available by appointment.

Disclaimer

Preliminary specifications are provided for general guidance only and may change without notice. They are believed to be accurate but are not guaranteed. All specifications, dimensions, capacities, weights, and performance figures should be independently verified by the buyer prior to purchase or use. Bridgeline Machinery Corp. makes no representations or warranties, express or implied, regarding the completeness, accuracy, or suitability of any machine specifications, and shall not be liable for any errors or omissions.

This machine is listed for sale by Bridgeline Machinery Corp. located in Deerfield, Illinois
