Reference #32462

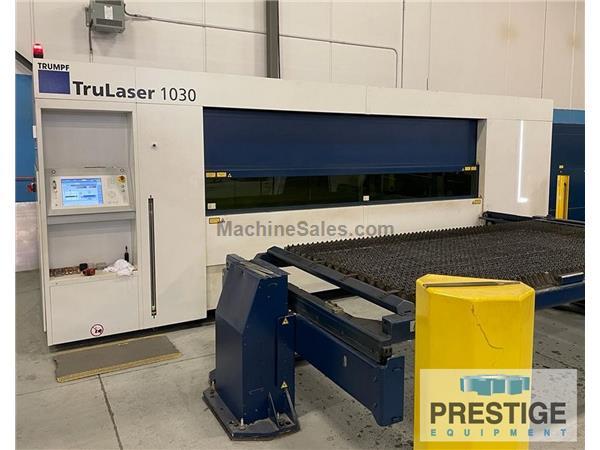

Trumpf Trulaser 1030 3 KW Fiber Laser

FEATURES:
Trumpf CNC Control
Trumpf Trudisk 3 KW Resonator
Front Load Pallet Changer

CAPACITY:
Laser Output .......................... 3 KW
X-Axis Working Range .................. 120"
Y-Axis Working Range .................. 60"
Z-Axis Working Range .................. 4.5"
Maximum Sheet Weight .................. 1,980 Lbs
Max. Material Thickness - Mild Steel .. 0.78"
Max. Material Thickness - Stainless ... 0.59"
Max. Material Thickness - Aluminum .... 0.59"
Max. Simultaneous X/Y Speed ........... 5,511 IPM
Approximate Overall Dimensions......... 368" x 236" x 91"
Approximate Weight .................... 20,950 Lbs

EQUIPPED WITH:
Trumpf CNC Control
Trumpf Trudisk 3001 3 KW Resonator
Front Load Pallet Changer
Chiller
Dust Collector

HOURS:
16,675 Laser On

NOTE:
Inspect In Plant Under Power

This machine is listed for sale by Prestige Equipment located in Melville, New York
