BAILEIGH Vertical Knee Mill VM-942E-1 - $RFQ

Item Number: #00138546

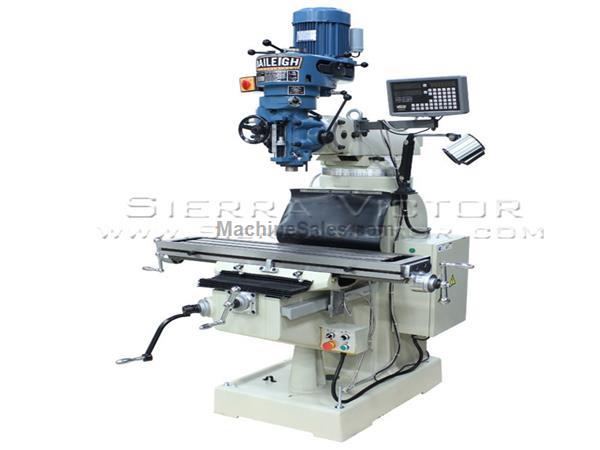

BAILEIGH Vertical Knee Mill VM-942E-1

BAILEIGH Vertical Knee Mill VM-942E-1
Stock Code:  VM-942E-1
Price: $RFQ

Knee Millers

Table width9"
Table length42"
Manufacturer:  Baileigh
Model:  VM-942E-1
Condition: New


Baileigh Industrial has a line of vertical milling machines to meet any shops requirements, whether it is price, size, or power. The VM-942E-1 vertical milling machine fits into the price category, but that does not mean that it doesn’t have features to back it up and make it a great value.
The VM-942 is an 8 speed milling machine that allows speed adjustments from 60 to 2760 rpm. Being able to fine tune the speed of the quill is important in prolonging tooling life and saving money. Speaking of the quill or spindle Baileigh Industrial has specified a R8 spindle taper for the VM-942E-1. The R8 taper is the most common taper in the industry making tooling easy to source.
The VM-942E-1 has a powerful 3 hp motor that runs on 220 volt single phase power and features a two axis digital read out. Other standard features of the VM-942 milling machine include a, coolant system dovetail slide ways, way covers, and halogen wok light.

Spindle Speeds: 8
Spindle Travel: 5"
Spindle Speed Range: 80, 140, 230, 350, 650, 1100, 1800, 2760 RPM
T-Slot Width: 5/8"
Table Size: 42" x 9"
Spindle Center To Column Min Max: 0 – 12"
Spindle Diameter: 3-11/32"
Spindle Feed Per Rev: .0015"/.003"/.006"
Spindle Head Swivel: 45° (F&R) 90° (R&L)
Motor Spindle: 3 HP
Travel Auto X Axis: 25-1/4"
Travel Auto Y Axis: 12-1/8"
Travel Auto Z Axis: 14-5/8"
Spindle Nose To Table Min Max: 2-3/8" – 17"
Spindle Taper: R8
Table Load Capacity: 770 lbs.
Motor Coolant: 1/8 HP
Cross Travel Of Ram: 13-1/2"
Power: 220V / 1-phase
Shipping Dimensions: 60" x 60" x 83"
Shipping Weight: 2,100 lbs.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.
