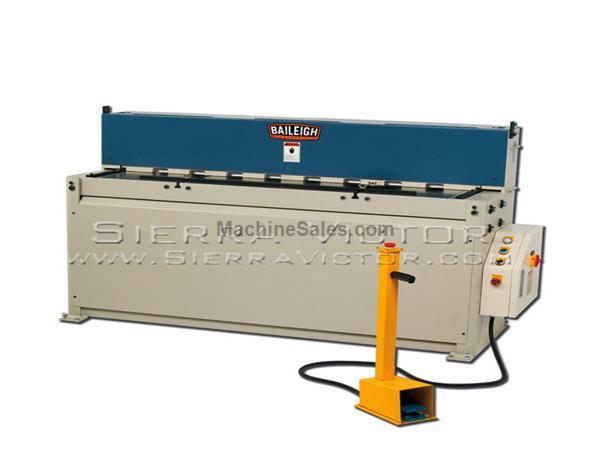

BAILEIGH Compact Metal Shear SH-6010
CALL FOR BEST PRICING!
The SH-6010 hydraulic shear is the perfect machine for any fabrication or sheet metal shop. It features a 60" wide cutting capacity and is capable of smoothly shearing through 10 gauge mild steel and 13 gauge stainless steel. These capacities will accommodate most sheet metal applications.
Using powerful industrial grade hydraulics and a fully welded metal plate construction, this machine is built to reduce flex when shearing at full capacity and result in smooth effortless cuts. The smooth movements help extend blade life. The upper and lower blades have multiple shearing edges, both will help extend blade life and save you money.
The operator has the controls to jog the upper carriage, produce one cut with one foot pedal push, or remain in an auto mode by holding the foot pedal down. Hold downs clamp the material to the in feed table so the material doesn't lift when being sheared. An adjustable back gauge for repeatability as well as front material supports is also included.
Max. Shear Length: 60"
Max Material Thickness - Mid Steel*: 10 ga / .135”
Max Material Thickness - Stainless Steel**: 13 ga / .090”
Strokes / Minute: 26
Front Gauge Length: 24"
Back Gauge Length: 24"
Blade Angle: 1°
Motor: 5 hp
Power Requirement: 220 volt / 3 phase / 60 hertz
Shipping Dimensions (L/W/H): 84” / 36” / 56”
Shipping Weight: 3,500 lbs
*Mild Steel T.S. 64,000 PSI
**Stainless Steel T.S. 100,000 PSI
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
