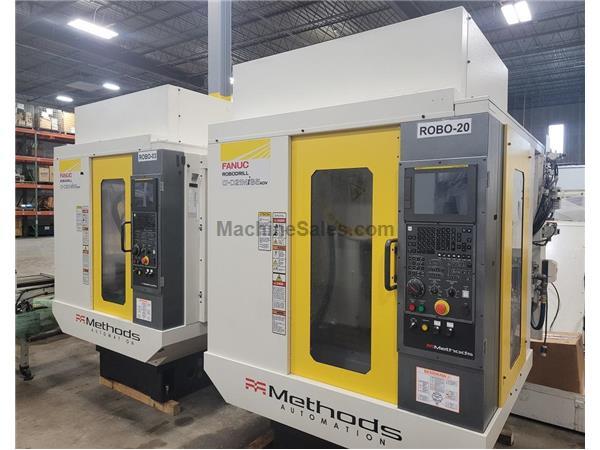

Fanuc Robodrill D21MiB5adv CNC Vertical Machining Centers, 5-Axis, 24K RPM, Rigid Tap, Fanuc 31iB5 Ctrl., 21 ATC, Robotic Loader System (2) Machines, |
|
| Stock Code: |
56191 |
| Price: | $RFQ |
| Subcategory: | Horizontal - Vertical Machining Centers CNC |
| Year of Manufacture: |
2021 |
| Manufacturer: |
Fanuc |
| Model: |
ROBODRILL D21MIB5ADV |
| Condition: | Used |
CNC Control
yes
Type of CNC Control
Fanuc 31iB5
# Controllable Axes
5
Table Size
25.6 x 15.7 (650 x 400)
Table Capacity
882 pounds
X-Axis Travel
19.7 inches
Y-Axis Travel
15.7 inches
Z-Axis Travel
15.7 inches
Spindle Speed
24000 RPM
Spindle Taper
BIG PLUS BBT-30
Tool Changer Capacity
21
X-Axis Rapid Traverse Rate
2,125 (54) in/min (m/min)
Y-Axis Rapid Traverse Rate
2,125 (54) in/min (m/min)
Z-Axis Rapid Traverse Rate
2,125 (54) in/min (m/min)
Coolant Thru Spindle
yes
Tool Change Time
Faster Tool Change Time 0.7 Tool-to-Tool 1.3 Chip-to-Chip
Floor Space
63.5 x 80.7 (1,615 x 2,050), Height: 63.5 x 80.7 (1,615 x 2,050) x 2
Weight of Machine
4850 Lbs. or 2200 kg
Features: This is a (2) Machine System with a Fanuc JSC-PRO Robot with Conveyor System - *The JSC-PRO can be configured with a lazy susan type two station exchange system holding vises or pallets, an over/under infeed and outfeed conveyorFanuc 31iB5 Control D21Probe(2) 5-Axis Rotary Tables - Tsudakoma TWA-130 K1 Rotary Tables (2) Serial No. 284224 and 204347Prepped for Coolant Thru (D21 Only)1.6 second Chip to Chip ATCDDR / DDR-T Compatible24K BT Spindle21 Tool ATC1,889 ipm RapidsTop Cover(2) LNS Chip Conveyors Coolant SystemHigh Pressure Coolant Pumps21 Position, Bi-Directional Tool Changer“Quick
ATC Recovery SystemRigid Tapping up to 8,000 RPM“Quick
Tap Recovery SystemHigh Speed Reverse TappingThread MillingHelical and Linear InterpolationSimultaneous ATC / Table PositioningMulti Step SkipUltra Precise 32,000,000 Pulses/Rev encoders1.5 G AccelerationThermal Growth CompensationSmart Backlash CompensationHRV3 PlusTool Compensation Memory CTool Offset Pairs 200 PairsPart Program Storage 2 mb6 + 48 Work OffsetsCoordinate System Rotation (G68.G69)• Coordinate System Setting (G92)• Custom Macro B• Canned Cycles for Drilling (G73, G74,G81~G89/G80)Manual Handle FeedCoolant System - 200 liter coolant tank andSpindle Coolant NozzleCoolant & Chip Splash Guard1,000 psi coolant thru prepped spindle - (Except D14iB)Skip Function (G31)Background EditingDynamic Graphic DisplayDynamic Graphic DisplayOn Screen Display of Spindle ‘rpm’ and‘Load’ Meters including cutting timecount downAlpha Numeric KeyboardAutomatic Lubrication SystemPeriodic Maintenance ManagementQuick Side (Operator Interface)Manual Guide for Milling (Shop FloorProgramming System)Manuals (1) Each: Operators,Maintenance, Parts, Operators CNC,& Maintenance CNCInterior Work Light - LED STYLE2nd Control Slot
This machine is listed for sale by Orca Machine Tools, Inc.
located in Fridley, Minnesota
|
