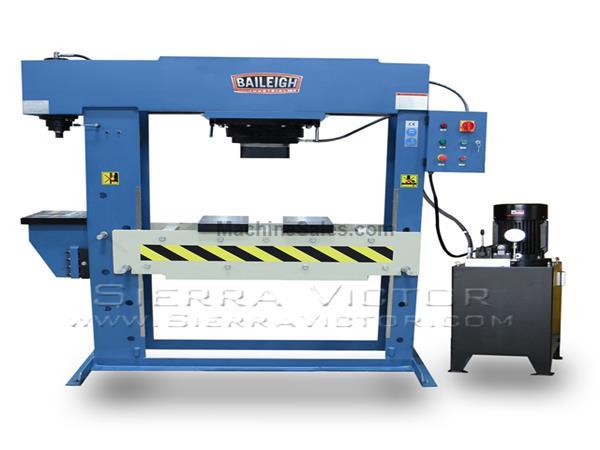

BAILEIGH Two Station Hydraulic Press HSP-200M-C
H - Frame Presses
CALL FOR AVAILABILITY AND BEST PRICING!
Our most powerful hydraulic shop press, the HSP-200M-C can deliver 200 tons of pressure on the main ram, but also includes a smaller 15 ton hydraulic arbor press attachment. A .375” cast steel framework makes this press one of the best values on the market.
Unique two station design.
200-ton capacity on main press.
20-ton capacity on side press.
48” working width.
11”-diameter cylinder with 11.8” stroke.
10 hp motor runs on 220-volt 3-phase power.
Stand-alone hydraulic system with a piston-style pump.
Cylinder can move left and right within the frame, ideal for off-center projects.
Pressure gauge comes standard.
Includes a 2-piece V-block set.
Baileigh Industrial covers this hydraulic H-frame press with a 1-year parts warranty.
Lifetime technical support by phone means you can call our experienced team whenever you need help or project tips
Return Speed: .228" / sec.
Motor: 10 HP
Piston Head Diameter: 6.125" (Main), 1.77" (Side)
Pump Speed: 4 gal/min
Oil Capacity: 32 gal.
Working Speed: .154" / sec.
Working Width: 48" (Main)
Maximum Capacity: 200 ton (Main), 20 ton (Side)
Cylinder Stroke: 11.8" (Main), 11.75" (Side)
Cylinder Movable: Yes (Main Only)
Cylinder Diameter: 11" (Main), 3.95" (Side)
Distance From Table To Ram:
Min. 8.11" - Max. 32.01" (Main),
Min. 9.84" - Max. 38.97" (Side)
Power: 220 Volt Three Phase
Shipping Weight: 6,644 lbs.
Frame: 78" x 46" x 89",
Pump: 24" x 20" x 56"
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
