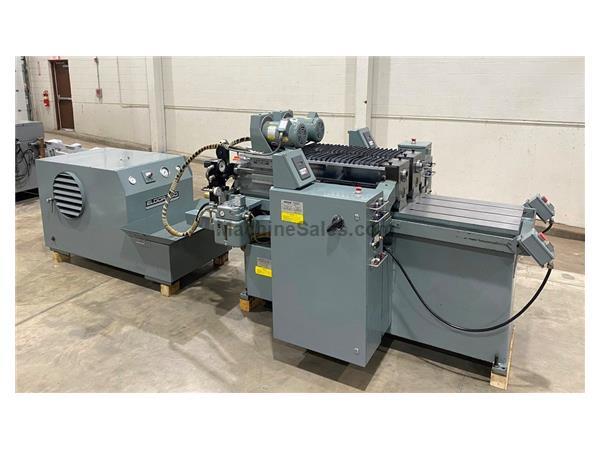

New - 1998
Serial No. 1801 & 1802

SPECIFICATIONS:
Number of Drilling Spindles - Independent............2
Capacity............0.75" Dia x 30" Stroke
Gundrilling Diameter Capacity............0.055" - 0.75" Mild Steel
Ball Screw Stroke Length............30"
Fixture Table Area............26"L x 20"W
Spindles:
- Speeds (18)............1455 - 11,740 RPM
- Center Line to Table............8"
- Distance between............12"
- Motor............(2) 3 HP, 3450 RPM
Ball Screw Feed Rates............0.1 - 99.9 IPM
Jog Reverse and Forward Feed Rate............200 IPM
Electrics - Currently Configured............460/3/60
Dimensions - Catalog............105"(L) x 64"(W) x 60"(H)
Weight - Catalog............4,000 Lbs.

ELDORADO F-18-1101 HIGH PRESSURE COOLANT SPECIFICATIONS:
Coolant Pressure - Variable............200-2000 PSI
Coolant Volume - Variable............0-18 GPM
Coolant Reservoir Capacity............90 Gal
Dimensions - Catalog............40"(L) x 75"(W) x 36"(H)
Weight (Dry) - Catalog............1,000 LBS.

EQUIPPED WITH:
Eldorado Model #f18-1101 High Pressure Coolant System
(2) Mega Flo-Minder, Flow Rate Monitor
(2) Spindle Load-Minder
Dual Depth Control
Automatic Lubrication System
(2) Aerotech Servo Controllers
(2) Whip Guides

*Preliminary Specifications Subject to Verification.

This machine is listed for sale by Liberty Machinery Company located in Lincolnshire, Illinois
