Reference #32967

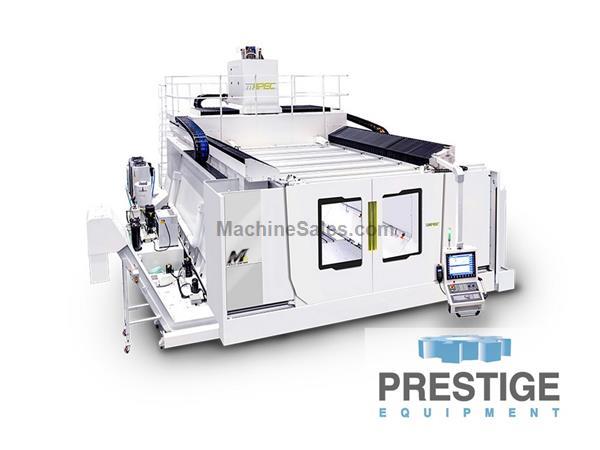

Apec GM40 CNC High Speed 5-Axis Gantry Mill

FEATURES:
Brand New - Still In Original Packing!
Siemens 840D CNC Control
2-Axis Swivel Head
40-Position Automatic Tool Changer
20,000 RPM

CAPACITIES:
X-Axis Travel ......................... 196.85"
Y-Axis Travel ......................... 157.48"
Z-Axis Travel ......................... 78.74"
Spindle End to Table .................. 29.52"-81.69"
Table Dimensions ...................... 196.85" x 157.48"

2-AXIS SWIVEL SPINDLE HEAD:
B-Axis Head Swivel .................... +/-125 Degree
C-Axis Head Rotation .................. 360 Degree
Spindle Taper ......................... HSK-63A
Spindle Speeds ........................ 20,000 RPM
Spindle Power ......................... 54.6 HP/52.5 HP
Spindle Torque ........................ Nm 56/67nm
Rotation Speed ........................ 50 RPM
Max. Torque ........................... Nm 1192/Nm 1050
Clamping Torque ....................... Nm 4000

FEED RATE:
X/Y/Z-Axis Rapid Feed Rate ............ 2362 IPM
X/Y/Z-Axis Acceleration ............... G 0.2
X/Y/Z-Axis Cutting Feed Rate .......... 944.8 IPM

TOOL CHANGER:
Tool Magazine Capacity ................ 40 ATC
Max. Tool Length ...................... 11.81"
Max. Tool Length ...................... 17.6 Lbs.

EQUIPPED WITH:
Siemens 840D CNC Control
2-Axis Swivel Head
40-Position Automatic Tool Changer
20,000 RPM Max. Spindle Speed


NOTE:
This Machine Has Never Been Used - Still In Original Packing!

This machine is listed for sale by Prestige Equipment located in Melville, New York
