Tonnage

700 tons

Stroke

42 inches

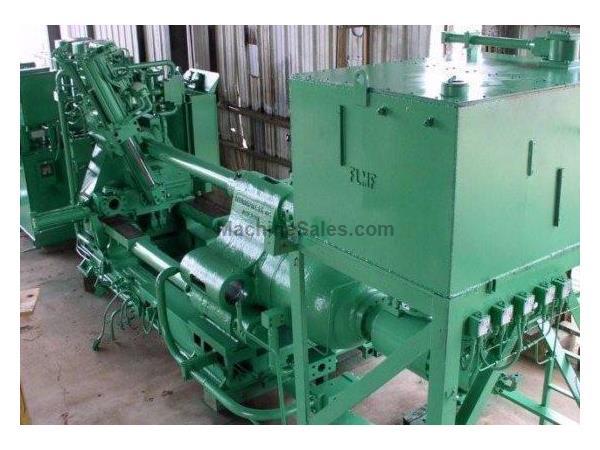

(1) Used 700 Ton Loewy "Hydropress" Extrusion PressStock # 14228Specifications:Extrusion Force.........................708 Tons @ 3200 PSIAssist Cylinders (2)....................50 Ton Capacity (each)Stroke(Ram).............................42" (nominal)Main Ram Diameter.......................22"Tie Rod Diameter(3).....................7"Distance Floor to Press Center-line.....36"Stump Shear Capacity....................65 TonsSpeeds:Advance............................0-700 I.P.M.Pressing (Extrusion)...............0-150 I.P.M. (est.)Opening (Return)...................0-1000 I.P.M.Container System:Billet Diameter....................4 1/2" (nominal)Billet Length......................16" (maximum)Container Heating System...........ElectricTravel of Container Housing........36" (est.)Hydraulic System:System Pressure....................3,200 PSISystem Capacity....................1200 Gal. (est.)System Horsepower (total)..........525 H.P.Equipped With:Original controls.Rexroth Variable Volume Pressure Compensated Hydraulic System With ReservoirsHydraulic Actuated Stump ShearExtrusion Die Holder and Clamping SystemBillet Container System With Electric Heater4" Dia. Extrusion Mandrel (1)Overall Dimensions......................30' L-R x 8' F-B x 106" HighWeight..................................54,500 lbs. (total est.)- Press frame...............35,000 lbs- Parts removed...........10,000 lbs- Hyd. unit.....................8,000 lbs- Prefill tank..................1500 lbs**Temporary Specifications Subject to Revisions****PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE****ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**

This machine is listed for sale by Machinery International Corp located in Woodbridge, Connecticut
