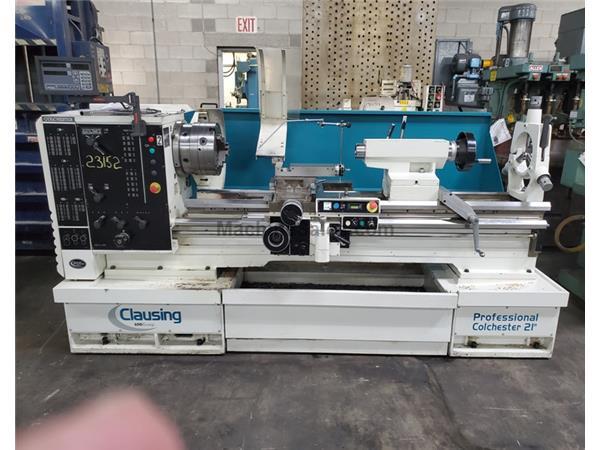

21" X 60" CLAUSING COLCHESTER GAP BED ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA … $35,500.00

HMC Stock # 23152
Machine Serial No.: TG5016
Machine Model No.: 8115VSJ
New Date: 2018

Swing: 21.81" (Catalog Specification from Clausing, Actual Measured Swing Over the Bed is Approx. 26")
Swing in Gap: 32.68" (Catalog Specification, Actual Swing in Gap Not Measured)
Width in Front of Faceplate: 8.5"
Swing Over Cross Slide: 14.57"
Spindle Bore: 4.09"
Spindle Nose: D1-11 Camlock
Spindle Nose Taper: #5 Morse
Spindle Speeds: 18 -1800 (Infinitely Variable Over Three Ranges)
Low: 18–200 RPM
Mid: 55–605 RPM
High: 160–1800 RPM
Cross Slide Travel: 11.81"
Tailstock Quill Diameter: 3.74"
Quill Travel: 5.7"
Quill Taper: #6 Morse
Longitudinal Feed Range: .0016 – .110 in./rev.
Cross Feed Range: .0008 – .055 in./rev.
(73) Standard Thread: 2 – 84 TPI
(27) Metric Threads: .2 – 14mm
(27) Diametral Threads: 8 – 72 DP
(51) Module Threads: .2 – 3.5 MOD

EQUIPPED WITH:
15" Bison 4 Jaw Chuck
12" (Import Brand) 3 Jaw Chuck
Newall DP700 Digital Readout
9" Roller Type Steady Rest
AC Spindle Drive
Chuck Guard
2-Axis Rapid Traverse
Heavy Duty Tailstock
Single Piece Leadscrew Cover
Roll Out Chip Pan
Separate Coolant Pan with Pump
Multiple Assorted Quick Change Tool Posts
Large Assortment of Quick Change Holders
Assorted Centers
Assorted Drill Chucks
Assorted Turning Tools
Assorted Boring Bars
Assorted Tapered Sleeves
15 HP Main Motor
Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size: 120" LR x 60" FB x 60" High x 6,000 Lbs.

This machine is listed for sale by Hildebrand Machinery Co Inc located in York, Pennsylvania
