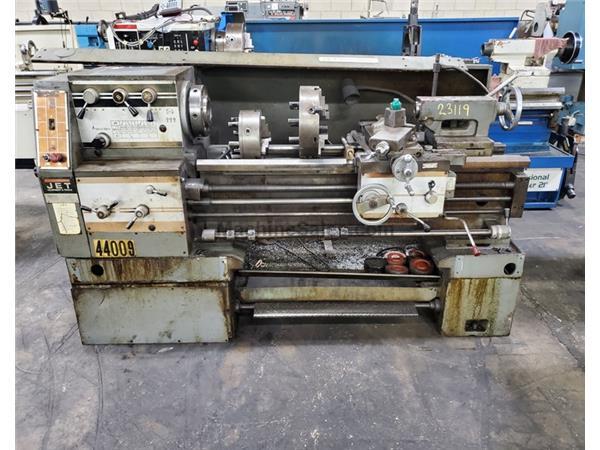

14" X 40" JET ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $1,500.00 AS IS

HMC Stock # 23119
Machine Serial No.: GA308 Jet Stock # 321398
Machine Model No.: 1440-3PGH China
New Date: Unknown

KNOWN ISSUES:
Cross Slide Screw Threads are STRIPPED in a Section, the Nut is OK
Power Feeds DO NOT WORK Reason Unknown, Machine is Very Dirty, Needs a Good Cleaning
Headstock Gears Running Sound Poor to Fair

Spindle Bore: 3-1/4"
Spindle Nose Mount: D8 Camlock
Swing in the Bed Gap: ??
Tailstock Quill Diameter: 2-3/4"
(12) Spindle Speeds: 40 to 1600 RPM
Tailstock Quill Taper: #4 Morse
(8) Assorted End Quadrant Change Gears for Inch & Metric Feeds & Threads

EQUIPPED WITH:
(1) 10" 3 Jaw Chuck, D8 with 2 Piece Jaws and Bolt on Hard Top Jaws, 3-1/2" Thru Hole
(1) 12-1/2" 3 Jaw Chuck, D8 with 1 Piece Reversible Hard Jaws, 3-3/4" Thru Hole
Quick Change Tool Post. Mfgr ?, 3" x 3" Square, No Tool Holders
Hardened Ground Bed Ways in Good Condition
Thread Chasing Dial
Inch Graduated Dials Each Axis
Swing in Place Carriage Feed Stop Bar with 5 Adjustable Stops
(2) Chuck Wrenches and Machine Work Light
Foot Pedal Spindle Brake
(6) Round Cast Iron Machine Mounting Pads
Removable Chip Pan
Coolant Pump in Base of Machine
Full Length Rear Splash Guard
7.5 HP Main Motor Wired For 3 Phase 60 Hz 220 / 440
Presently Wired for 220 Volts

Overall Size: 89" LR x 42" FB x 49" High x 4,500 Lbs.

This machine is listed for sale by Hildebrand Machinery Co Inc located in York, Pennsylvania
