Reference #32731

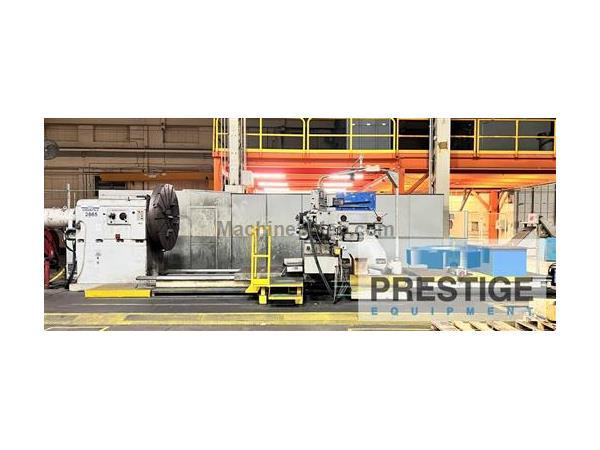

Ravensburg 100" x 254" Lathe with Crane Rope Drum Threading

FEATURES:
63" Diameter 4-Jaw Face Plate
Newall DP700 Digital Readouts
Tailstock with Live Center
Drum Grooving Change Gears
Copying Device for Drum/Crane Threads
60 HP Spindle Drive
Chip Conveyor

SPECIFICATIONS:
Actual Swing Over Bedways ............. 100"
Maximum Swing Over Cross Slide ........ 84"
Distance Between Centers .............. 254"
Max Weight Between centers ............ 19.8 Tons
Bed Width ............................. 53.54"
Tailstock Quill Dimeter ............... 11"
Speeds (24) ........................... .52-240 RPM
Machine Footprint ..................... 480" x 130"
Electrics ............................. 460/3/60 Cycle


EQUIPPED WITH:
63" Diameter 4-Jaw Face Plate
Newall DP700 Digital Readouts
Tailstock with Live Center
Drum Grooving Change Gears
Copying Device for Drum/Crane Threads
60 HP Spindle Drive
Chip Conveyor

NOTE:
Control Retrofit in 2010
ABB DCS800 Drive
They were doing Crane Drums

This machine is listed for sale by Prestige Equipment located in Melville, New York
