Reference #31649

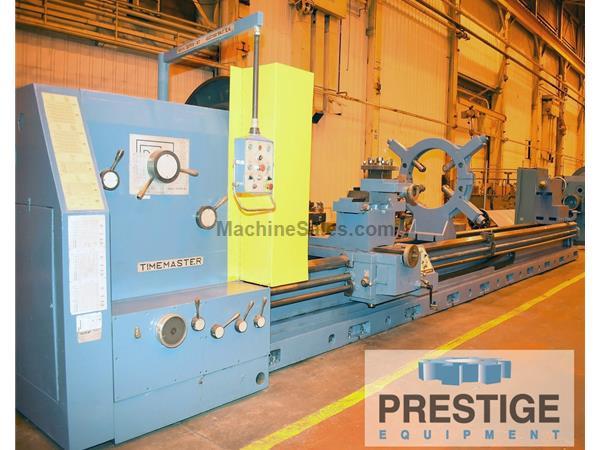

Gurutzpe Timemaster Super-BT 8000/800 63" x 314'' Engine Lathe w/ Taper Attachment

FEATURES:
55" 4-Jaw Chuck
4-Way Tool Post
Taper Attachment
Inch/Metric Threading
(2) Roller Type Steady Rest: 52" & 30"

CAPACITY:
Swing Over Bed ........................ 62.99"
Swing Over Cross Slide ................ 43"
Distance Between Centers .............. 314.96"
Swing in Gap ......................... 75"
Gap Length ........................... 9.5"
Max. Workpiece Weight, Unsupported .... 30,000 Lbs
Spindle Speeds ........................ 2.8 - 400 RPM
Spindle Bore .......................... 4.01"
Bed Width ............................. 31.5"
Longitudinal Feed Rate ................ .0031 - .23 IPR
Cross Feed ............................ .0015 - .11 IPR
Metric Threading, 96 .................. 1 - 300 mm
Inch Threading, 108 ................... .0625 - 30 TPI
Spindle Motor ......................... 50 HP
Approx. Machine Weight ................ 51,400 Lbs
Machine Electrics .................... 230/3/60
Machine Footprint .................... 447" x 108"
Machine Height ....................... 100"

EQUIPPED WITH:
55" 4-Jaw Chuck
4-Way Tool Post
Taper Attachment
Inch/Metric Threading
(2) Roller Type Steady Rest: 52" & 30"

This machine is listed for sale by Prestige Equipment located in Melville, New York
