Reference #32467

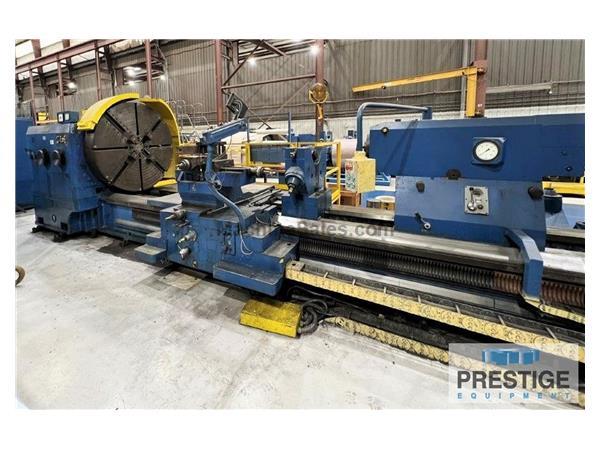

Poreba Model TCG-160 6M 63" x 240" Heavy Duty Lathe

FEATURES:
63" 4-Jaw Independent Chuck
Heavy Duty Tool Post
Inch/Metric Threading
Pendant Station on Carriage
Hardened Ways
98 HP Main Spindle Motor
(3) Steady Rests
40 Ton Weight Capacity

CAPACITY:
Maximum Swing Over Bedways ............ 62.99"
Maximum Swing Over Carriage ........... 50.39"
Distance Between Centers .............. 240"
Width Of Bed .......................... 43.30"
Spindle Bore .......................... 4.13"
Spindle Speeds (24) ................... 1.6-200 RPM
Spindle Diameter of Front Bearing ..... 12.59"
Tailstock Quill Diameter .............. 11.02"
Tailstock Quill Travel ................ 7.87"
Tailstock Quill Taper ................. #6 MT
Weight Capacity Between Centers ....... 66,000 lbs
Weight Capacity With One Steady Rest .. 77,000 lbs
Weight Capacity With Two Steady Rest .. 88,000 lbs

EQUIPPED WITH:
63" 4-Jaw Independent Chuck
Heavy Duty Tool Post
Inch/Metric Threading
Pendant Station on Carriage
Hardened Ways
Power Tailstock Quill
Power Tailstock
98 HP Main Spindle Motor
(3) Steady Rests

This machine is listed for sale by Prestige Equipment located in Melville, New York
