Reference #23124

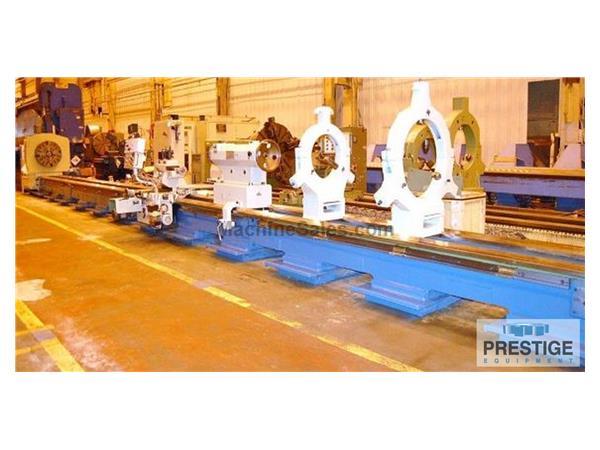

Poreba TR 135/B2 53" x 551" Engine Lathe

FEATURES:
Inch & Metric Threading
Grinding Attachment
55 HP Main Motor

CAPACITY:
Swing Over Bedways .................... 53.14"
Swing Over Cross Slide ................ 40.15"
Swing In Gap .......................... 62"
Length of Gap From Chuck Face ......... 20.5"
Spindle Bore .......................... 4.72"
Distance Between Centers .............. 551"
Maximum Weight Capacity, Unsupported .. 20,000 Lbs
Speeds (21) ........................... 5-500 RPM
Threads, Inch (61) .................... .5 - 60 TPI
Threads, Metric (62) .................. 1-120 MM
Threads, Modular (45) ................. .25 - 30 MM
Threads, DP (70) ...................... .5 - 60 TPI
Spindle Nose Mount .................... A1-15
Tailstock Quill Diameter .............. 7.5"
Tailstock Quill Travel ................ 14"
Approx. Machine Weight ................ 49,020 LBS
Approx. Floor Space (L x W x H) ....... 748" x 96" x 77"

EQUIPPED WITH:
Operators Station
3-Way Tool Post
Grinding Attachment (Belt Sander Type)
Digital Readout System (Not Operational)
Hardened Bedways
Inch/Metric Threading
6-Way Power Rapid Traverse
Roller Type Work Rest
18.5" 3-Roller Type Steady Rest
27" 3-Roller Type Steady Rest
24.75" 4-Jaw Chuck
31.49" 4-Jaw Chuck
24.75" 3-Jaw Chuck
Central Lubrication System
55 HP Main Motor 380/420/3/50 Cycle

This machine is listed for sale by Prestige Equipment located in Melville, New York
