Reference #31604

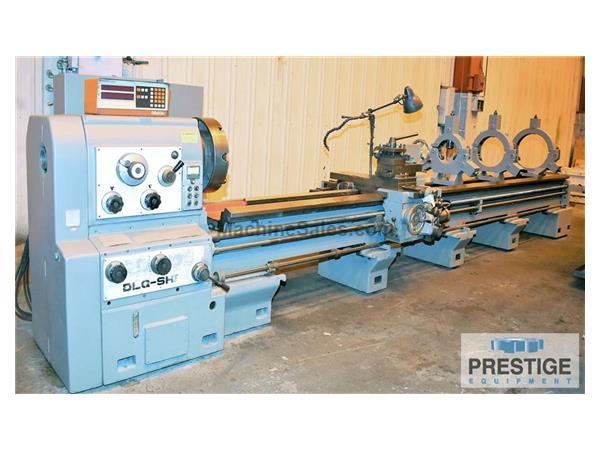

Dainichi 24" x 196" DLG-SHB Manual Lathe

FEATURES:
Teledyne Gurley Pathfinder 2-Axis Digital Readout
Inch/Metric Threading
Taper Attachment
3-Steady Rests

CAPACITY:
Maximum Swing Over Bedways ............ 24.80"
Distance Between Centers .............. 196.85"
Maximum Swing Over Cross Slide ........ 15.74"
Maximum Swing Over Gap ................ 35.43"
Length of Gap ......................... 11.81"
Spindle Speeds ........................ 9 - 1600 RPM
Spindle Nose .......................... A1-11
Spindle Hole Diameter ................. 1.33"
Longitudinal Feed Rate ................ .002 - .13 IPR
Cross Feed Rate ....................... .001 - .06 IPR
Metric Threading, 31 Changes .......... .05 - 28 mm
Inch Threading, 38 Changes ............ 56 - 1 TPI
Tailstock Quill Diameter .............. 3.14"
Tailstock Quill Travel ................ 7.87"
Approximate Machine Weight ............ 9,460 Lbs

EQUIPPED WITH:
18" Rohm 4-Jaw Chuck
Teledyne Gurley Pathfinder 2-Axis Digital Readout
Inch/Metric Threading
Taper Attachment
3 - Steady Rests (9", 12.5", 16.5")
Chip Pans

NOTE:
Inspect Under Power in Philadelphia, PA

This machine is listed for sale by Prestige Equipment located in Melville, New York
