Reference #32360

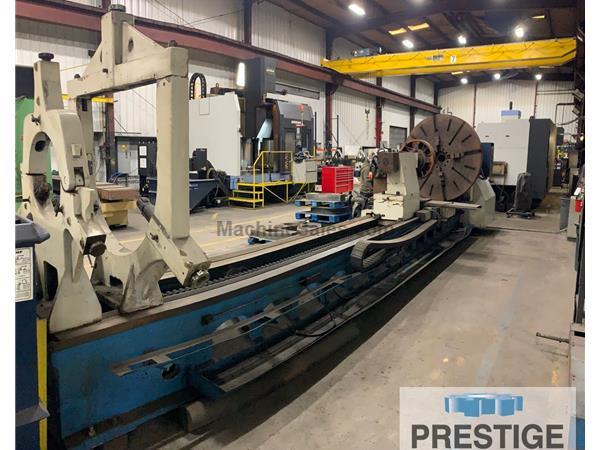

DMTG 63" x 240" Engine Lathe

FEATURES:
63.2" Diameter 4-Jaw Independent Chuck
Flame Hardened Bed Ways
Inch / Metric Threading
4-Way Tool Post

CAPACITY:
Swing Over Bed ....................... 62.99"
Swing Over Cross Slide ............... 48.42"
Width of Guide Way ................... 43.32"
Distance Between Centers ............. 236.22"
Max Cutting Length ................... 228.34"
Spindle Bore ......................... 5.12"
Spindle Speeds (21 Speeds) ........... 3.15-315 RPM
Spindle Nose ......................... A2-15
Maximum Loading Weight ............... 13,200 Lbs.
Tailstock Diameter ................... 6.3"
Tailstock Travel ..................... 11.81"
Estimated Dimensions ................. 356" x 82" x 88"
Estimated Weight ..................... 33,360 Lbs

EQUIPPED WITH:
63.2" Diameter 4-Jaw Independent Chuck
Flame Hardened Bed Ways
(1) Roller Type Steady Rest: 31.5"
(1) Follow Rest: 13.78"
Inch / Metric Threading
4-Way Tool Post
Work Light
Coolant System
29 HP Drive Motor With Controls

NOTE:
Low Hours, Like New!!

This machine is listed for sale by Prestige Equipment located in Melville, New York
