24"/35" x 200" Dianichi Gap Bed Lathe Model DLG-SHB 63X500 N - $RFQ

Item Number: #00165281
24&quot;/35&quot; x 200&quot; Dianichi Gap Bed Lathe Model DLG-SHB 63X500 N

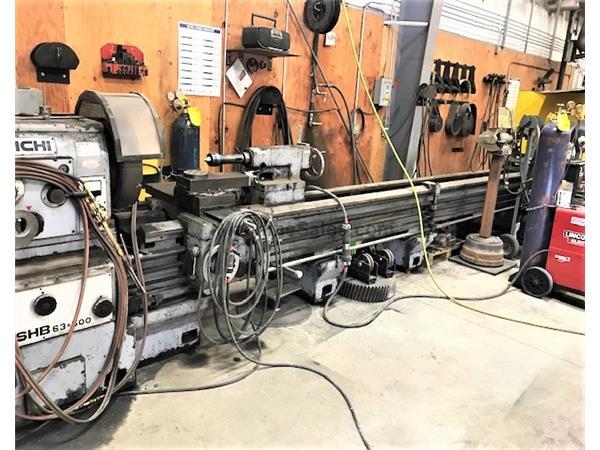

24"/35" x 200" Dianichi Gap Bed Lathe Model DLG-SHB 63X500 N
Stock Code:  EI3778
Price: $RFQ

Engine Lathes

Year of Manufacture:  1976
Manufacturer:  Dianichi
Model:  DLG-SHB 63X500
Condition: Used


Swing Over Bed Ways: 24.8"
Swing In Removable Gap: 35.4"
Swing Over Cross Slide: 15.7"
Distance Between Centers: 200"
Hole Thru Spindle: 3.3"
Spindle Nose: A1-11Inch
Width of Bed
Spindle Speed Range (16): 9 - 800 RPM
Longitudinal Feed Range: .005" x .245"
Cross Feed Range Half of Long Setting Inch Threading Range: 1 - 56 TPI
Metric Threading Range: 5 - 28mm
Tailstock Quill Diameter: 31"
Tailstock Spindle Travel: 4"
Tailstock Spindpe Taper: #5MT A

Dimensions (Approx): 50" (W) x 357" (L)
Weight (Approx): 12,500lbs

Equipped With:

Inch & Metric Threading
Removable Gap
23 1/2" Chuck (4 Jaw)
16" Roller Type Steady Rest
Rapid Traverse
Hardened & Ground Ways

*** Preliminary specifications are subject to verification and should only be used as a guide.
