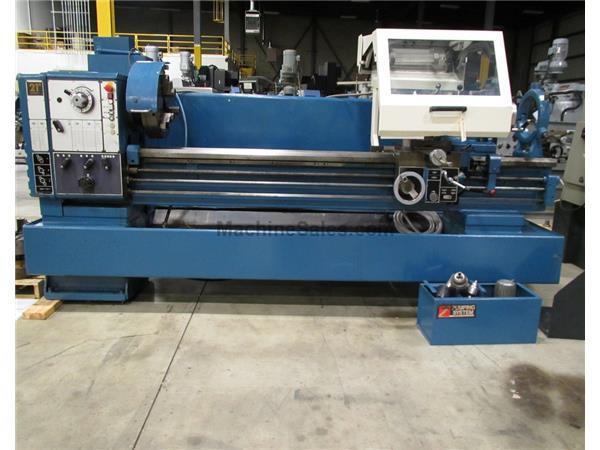

HARRISON MODEL M500 GAP BED GEARED HEAD ENGINE LATHE, 21" X 80" - $RFQ

Item Number: #00145617
HARRISON MODEL M500 GAP BED GEARED HEAD ENGINE LATHE, 21&quot; X 80&quot;

HARRISON MODEL M500 GAP BED GEARED HEAD ENGINE LATHE, 21" X 80"
Stock Code:  TK-21090
Price: $RFQ
Subcategory:

Engine Lathes

Swing21"
Centers80"
Year of Manufacture:  1989
Manufacturer:  Harrison
Model:  M500
Condition: Used

SWING OVER BED: 21"
DISTANCE BETWEEN CENTERS: 80"
SWING OVER CROSS SLIDE: 14-1/2"
CENTER HEIGHT: 10-1/4”
IN GAP DIAMETER: 28-3/4”
IN GAP LENGTH: 7”

HEADSTOCK
SPINDLE BORE: 3-1/8”
NOSE: D1-8 CAMLOCK
MORSE 18): 31 - 1,600 RPM
MOTOR: 12.5 HP

THREADS
METRIC PITCHES (35): 0.2 - 14MM
IMPERIAL PITCHES (38): 2 - 72 TPI
MODULE PITCHES (18): 0.2 - 3.5 MOD
DIAMETRAL PITCHES (27): 8 TO 72 DP

FEEDS
FEEDS (38): .04 TO .71 MM/REV
IMPERIAL (38): .0016 TO .028 IN/REV

CARRIAGE
CROSS SLIDE WIDTH: 7-5/8”
TRAVEL: 10”

TOP SLIDE
WIDTH: 4-1/2”
TRAVEL: 4-3/4”

TAILSTOCK
TAILSTOCK QUILL DIAMETER: 2-7/8”
TRAVEL: 6-1/8””
MORSE TAPER: 5 MT

GENERAL
WEIGHT: 5,030 LBS
OVERALL DIMENSIONS: 132” LR X 58” FB X 66” H
ELECTRICS: 460 VOLTS, 3 PH, 60 CYC

EQUIPPED WITH
15” 4-JAW CHUCK
15” 3-JAW CHUCK
16” FACE PLATE
9” STEADY REST
4-WAY TOOL POST
DEAD CENTER
LIVE CENTER
(2) DRILL CHUCKS
TRAV-A-DIAL
THREAD CHASING DIAL
CHUCK GUARD WITH WORK LIGHT
COOLANT
