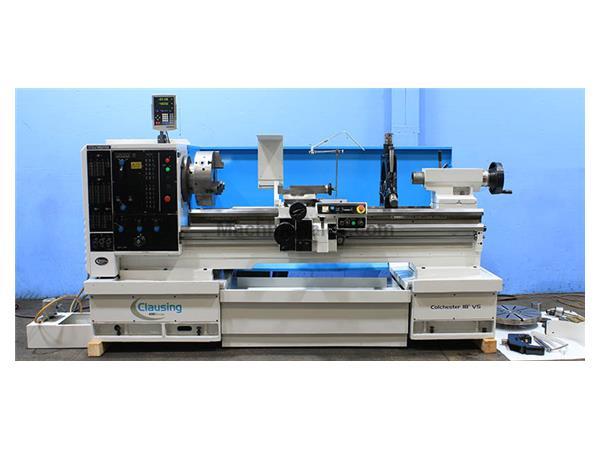

2005 CLAUSING COLCHESTER MASCOT 18VS GAP BED ENGINE LATHE, 18” X 60” - $RFQ

Item Number: #00142517
2005 CLAUSING COLCHESTER MASCOT 18VS  GAP BED ENGINE LATHE, 18” X 60”

2005 CLAUSING COLCHESTER MASCOT 18VS GAP BED ENGINE LATHE, 18” X 60”
Stock Code:  JV-20968TK
Price: $RFQ
Subcategory:

Engine Lathes

Swing18"
Centers60"
Year of Manufacture:  2005
Manufacturer:  Clausing
Model:  Mascott 18VS
Condition: Used

SPECIFICATIONS SWING OVER BED: 18.1”
SWING OVER GAP: 27.74” SWING OVER CROSS SLIDE: 10.625" DISTANCE BETWEEN CENTERS: 60"
WIDTH OF BED: 15.75”

HEADSTOCK
SPINDLE NOSE: D1-8 CAMLOCK
SPINDLE BORE: 3”

SPINDLE SPEEDS
LOW RANGE: 20 -225 RPM
MEDIUM RANGE: 60 – 675 RPM
HIGH RANGE: 175 – 2,000 RPM

THREADS
IMPERIAL PITCHES (73): 2 – 84 TPI
DIAMETRICAL PITCHES (27): 8 – 72 DP
METRICS PITCHES (66): .2 – 14 MM PITCH
MODULE PITCHES (20): .2 – 3.5 MOD

CARRIAGE
LONGITUDINAL FEEDS RANGE: .0016 - .11 IPR
CROSS FEED RANGE: .0008 – .055 IPR

TAILSTOCK
QUILL DIAMETER: 3.74”
CENTER: 6 MT
SPINDLE TRAVEL: 7"

GENERAL
MOTOR: 15 HP
ELECTRICS: WILL ADVISE
DIMENSIONS: 120” LR X 49” FB X 51” H
WEIGHT: 6,000 LBS

FEATURES
• ELECTRONIC VARIABLE SPINDLE SPEED IN THREE GEARED RANGES THROUGH
AC INVERTER VARIABLE SPEED DRIVE
• INDUCTION HARDENED & PRECISION GROUND BED WAYS
• RAPID TRAVERSE FOR THE CARRIAGE AND CROSS SLIDE

EQUIPPED WITH
NEWALL 2-AXIS DIGITAL READOUT
TAPER TURNING ATTACHMENT
3-JAW CHUCK
4-JAW CHUCK
STEADY REST
LIVE CENTER
