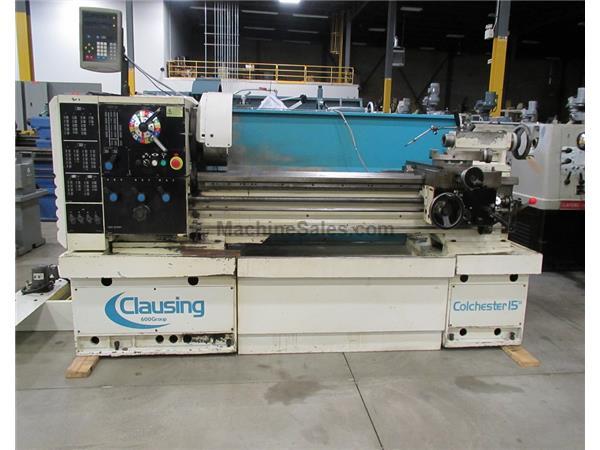

SPECIFICATIONS

SWING OVER BED: 15.7"
SWING OVER CROSS SLIDE: 9.7"
CENTER DISTANCE: 50"
BED WIDTH: 12.5"
SWING IN GAP: 23"

HEADSTOCK
SPINDLE NOSE: D1-6
SPINDLE THROUGH HOLE: 2.125"
SPINDLE SPEEDS (16): 25 – 2,000 RPM
SPINDLE CENTER: 4 M.T.

FEEDS AND THREADS
LONGITUDINAL FEED RANGE: .0014 - .096"
CROSS FEED RANGE: .0007 - .048"
RANGE OF ENGLISH THREADS (56): 2 - 56 TPI
RANGE OF METRIC THREADS (51): .2 - 14 MM
LEADSCREW DIAMETER: 1.25/4 TPI

CARRIAGE
CROSS SLIDE TRAVEL: 9.8"
COMPOUND REST TRAVEL: 5.1"
TAILSTOCK QUILL DIAMETER: 2.8"
CENTER SIZE: 5 MT
QUILL TRAVEL: 5.5"
DRIVE MOTOR: 7.5 HP
WEIGHT (APPROX.): 3,300 LBS

GENERAL
DIMENSIONS: 108” LR X 52” FB X 52” FB
WEIGHT: 3,300 LBS
ELECTRICS: 220 VOLTS, 3 PH, 60 CYC

EQUIPPED WITH

NEWALL C-80 2-AXIS DRO
3-JAW CHUCK
TAPER ATTACHMENT
STEADY REST
QUICK CHANGE TOOL POST

This machine is listed for sale by located in Bethlehem, Pennsylvania
