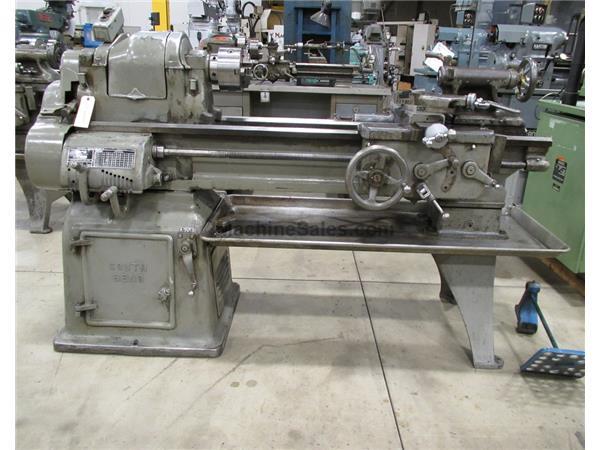

SOUTH BEND 16 STRAIGHT BED ENGINE LATHE, 16" X 36" - $RFQ

Item Number: #00119443
SOUTH BEND 16 STRAIGHT BED ENGINE LATHE, 16&quot; X 36&quot;

SOUTH BEND 16 STRAIGHT BED ENGINE LATHE, 16" X 36"
Stock Code:  GP-20857
Price: $RFQ
Subcategory:

Engine Lathes

Swing16"
Centers36"
Manufacturer:  South-Bend
Model:  16
Condition: Used

SPECIFICATIONS

SWING OVER BED: 16-1/4"
DISTANCE BETWEEN CENTERS: 36"
BED LENGTH: 60"
SPINDLE BORE: 1-3/8"
SIZE OF CENTER, MORSE TAPER: NO. 3
NUMBER OF THREADS AND FEEDS: 48
RANGE OF THREADS: 4-224 TPI
RANGE OF FEEDS: 0.001" TO 0.0841"
LEAD SCREWS DIAMETER AND THREADS: 1-1/8" - 6
CROSS SLIDE TRAVEL: 10-1/16"
MORSE TAPER OF TAILSTOCK: NO. 3
SPINDLE TRAVEL OF TAILSTOCK: 5-3/4"

GENERAL

MOTOR: 3 HP
OVERALL SIZE: 80" LR X 40" FB X 64” H
WEIGHT: 2,500 LBS
ELECTRICS: 220 VOLTS, 3 PH, 60 CYC

EQUIPPED WITH

6-1/2" 3-JAW CHUCK
TAPER ATTACHMENT
THREAD CHASING DIAL
THREAD NOSE HEADSTOCK

Contact Seller

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania

Contact the Seller

Action Machinery Co., Inc.
  2320 Highland Ave
Bethlehem
PA 18002
United States
