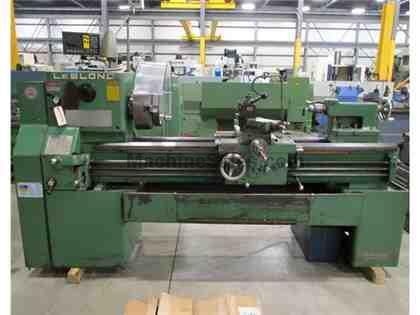

CAPACITY
SWING OVER BED: 19-1/4"
SWING OVER CROSS SLIDE: 12-1/4”
DISTANCE BETWEEN CENTERS: 54”
SIZE OF TOOL – FORGED: 5/8” X 1-1/4”
SIZE OF TOOL HOLDER: 5/8” X 1-3/8”

HEADSTOCK
SPINDLE SPEEDS (12): 40 – 1,600 RPM
SPINDLE HOLE, STRAIGHT: 1-49/64”
SPINDLE, SIZE OF HOLE TAPER: AMERICAN STANDARD 200
SPINDLE SIZE OF CENTER: #4 MT
SPINDLE NOSE, TAPER KEY DRIVE: L-1
SPINDLE NOSE, DIAMETER, LARGE END OF TAPER: 4-1/8”

BED
WIDTH: 14-3/8”
DEPTH: 11-1/2”

CARRIAGE
LENGTH OF BED: 21”
BRIDGE WIDTH: 7-7/8”
CROSS SLIDE TRAVEL WITH TAPER ATTACHMENT: 9-5/8”
COMPOUND REST TRAVEL: 4-3/8”

FEEDS – THREADS
FEED CHANGES: 48 SELECTIONS
FEED RANGE, INCH: .0018 - .104 IPR
FEED RANGE, METRIC: .05 – 2.6 MMPR
THREADS: 48 SELECTIONS
THREADS, INCH: 2 TO 112 TPI
THREAD, METRIC: .25 TO 14 TPM

TAILSTOCK
SPINDLE DIAMETER: 2-7/16”
CENTER: #4 MT

GENERAL
DIMENSIONS: 108” LR X 44” FB X 60” H
ELECTRICS: 220 VOLTS, 3 PH, 60 CYC

EQUIPPED WITH
12” 3-JAW CHUCK
DRO PROS 2-AXIS DIGITAL READOUT
ALORIS TOOL POST WITH HOLDERS
COOLANT SYSTEM
THREAD CHASING DIAL
INCH/METRIC THREADING
LIVE CENTER
JACOBS DRILL CHUCK
TAILSTOCK
CHUCK SHIELD
WORK LIGHT

This machine is listed for sale by located in Bethlehem, Pennsylvania
