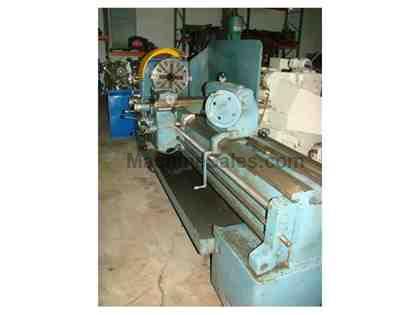

21" x 80" cc, SUMMIT, inch/mm, gap, TA, 1968 - $RFQ

Item Number: #00105474
21&#034; x 80&#034; cc, SUMMIT, inch/mm, gap, TA, 1968

21" x 80" cc, SUMMIT, inch/mm, gap, TA, 1968
Stock Code:  6738
Price: $RFQ

Engine Lathes

Manufacturer:  Summit
Condition: Used

Year of Manufacture 1967

Swing over bedways 21-1/2"
Swing over cross slide 12-1/2"
Swing over gap 30"
Distance between centers 80"
Width of bed 15"
Spindle speeds--number 12
Spindle speeds--range 15-1600 rpm
Hole thru spindle 3-1/8"
Spindle nose type L-2
Threads per inch--number 72
--range 1/4 to 65
Metric threads--number 65
--range 0.5 to 112
Diametral threads--number 72
--range 1/2 to 112
Module threads--number 57
--range 0.25 to 56
Compound rest travel 9"
Cross slide travel 13-3/4"
Tailstock barrel travel 9"
Tailstock barrel taper No 5MT
Main drive motor 10 HP
Electrics 220/440/3/60
Overall weight 8,600 lbs
Dimensions (L x W x H) 148" x 47" x 60"

17-1/2" 4-jaw chuck, Coolant system, 4 way toolpost
Taper attachment, Home made chuck guard
