JET GH-26120ZH Geared Head Lathe - $RFQ

Item Number: #00074916

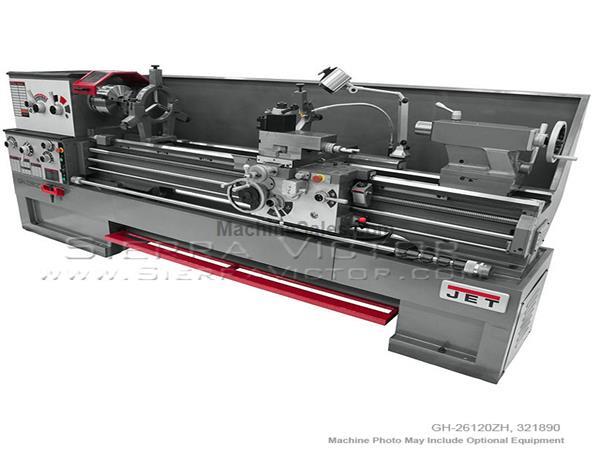

JET GH-26120ZH Geared Head Lathe

JET GH-26120ZH Geared Head Lathe
Stock Code:  321890
Price: $RFQ

Engine Lathes

Manufacturer:  Jet
Model:  GH-26120ZH
Condition: New


Large 4-1/8" Spindle Bore
Clutch operated headstock with all headstock gears hardened and ground
Bed ways are induction hardened and ground for durability
Heavy-duty tailstock and quill
One piece heavy-duty cast iron base and bed for GH-2680ZH
12 speeds in range 36-1600 RPM
Rapid power traverse to cross slide and carriage
Universal gearbox for quick threading set-up

Max. Swing Over Bed (in.): 26
Max. Swing Over Cross Slide (in.): 16.5
Swing Through Gap (in.): 34
Length of Gap (in.): 8
Distance Between Centers (in.): 120
Spindle Bore (in.): 4-1/8
Spindle Mount: D1-8
Spindle Taper: MT-5
Number of Spindle Speeds: 12
Range of Spindle Speeds (RPM): 36-1,600
Number of Longitudinal & Cross Feeds: 65
Range of Longitudinal Feeds (in./rev.): .0023 - .0937
Number of Cross Feeds: 63
Range of Cross Feeds (Inch/rev): .0040 - .0404
Number of Inch Threads: 48
Range of Inch Threads (in.): 2-30
Number of Metric Threads: 22
Range of Metric Threads (mm): 1-14
Number of D.P Threads: 24
Range of D.P Threads: 4-56 DPI
Number of Module Threads: 18
Range of Module Threads (mm): 0.5-7
Maximum Tool Size (in.): 1-1/4 x 1-1/4
Maximum Compound Slide Travel (in.): 5-1/2
Cross Slide Travel (in.): 14-9/16
Carriage Travel (in.): 108-1/4
Tailstock Spindel Travel (in.): 6
Taper in Tailstock Spindle: MT-5
Follow Rest Capacity (in.): 3-15/32
Steady Rest Capacity - Large (in.): 4-29/32 / 9-7/16
Width of Bed (in.): 16
Main Motor: 10HP, 230/460V, 3Ph, Prewired 230V
Overall Dim. w/ Stand (in.): 178 x 43 x 57
Net Weight (lb.): 9,362

26120ZH SERIES LATHES Packages:
321893: GH-26120ZH, Lathe with Taper Attachment
321891: GH-26120ZH, Lathe with Newall DP700 DRO
321894: GH-26120ZH, Lathe with Newall DP700 DRO & Taper Attachment
321892: GH-26120ZH, Lathe with Acu-Rite 200S DRO
321895: GH-26120ZH, Lathe with Acu-Rite 200S DRO & Taper Attachment

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 2 YEAR – Limited
